Brand Name : | JINPAT |
Model Number : | LPT000-0410-0602-HF01 |
Certification : | ISO9001.ISO14000.CE.UL.FCC.RoHS |
Price : | Negotiable |
Payment Terms : | T/T, C/C, Paypal |
Supply Ability : | 500 pieces / week |
Delivery Time : | 2 weeks ARO |
High frequency electric slip ring,0~80rpm Aluminum Alloy 380VAC IP54 Rotor300mm,Radar slip ring
JINPAT radar moving mid-pass antenna slip ring supports mixed transmission of multiple signal currents, and supports multi-channel high-frequency rotary joint integration. The outlet end can be welded with aviation plug.
Electronic & Electruc | Mechanical | |||
Circuits | Total | 11CKT | Working Speed | 0~80rpm |
Detail | 4X10A+6X2A | Inner Diameter | / | |
Rating Voltage | 380VAC | Contact Material | Precious Metal | |
Dielectric Strength | 1000VAC@50Hz | Housing Material | Aluminum Alloy | |
Insulation Resistance | ≥500MΩ@500VDC | Lead Wire Length | Stator:Aviation plug Rotor:500mm | |
Environment | Remarks | |||
Working Temperature | -40°C~+60°C | Application | / | |
Working Humidity | ≤60%RH | Other | / | |
IP | IP54 | Note:"P" stands dor power, "S" stands for signal |

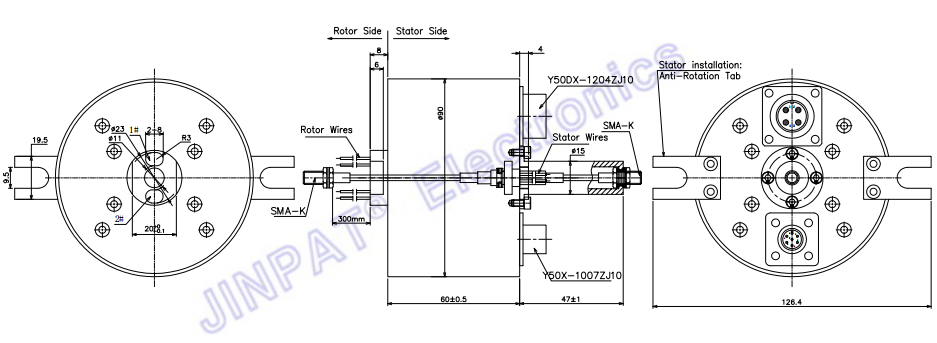

High frequency electric slip ring outline drawing

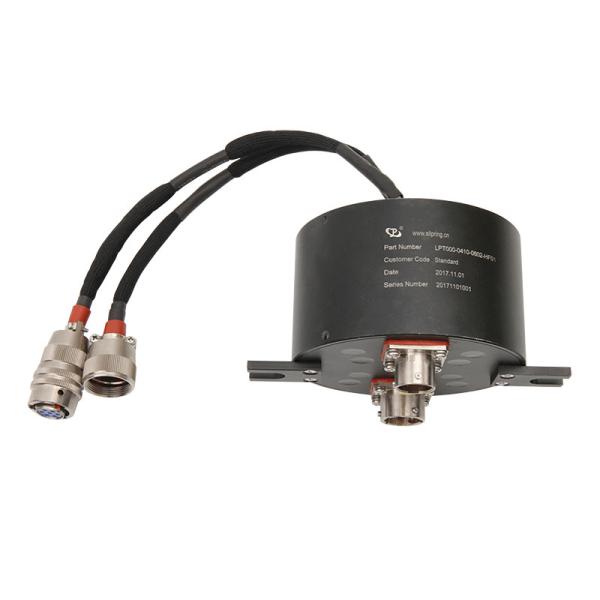

High frequency electric slip ring picture
![]() |
