1000mm 2000 Rpm Through Bore Slip Ring Integrate High Frequency Fiber Signal

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPT012B-0602-HS-HT
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	T/T, C/C, Paypal
Supply Ability :	500 pieces / week
Delivery Time :	2 weeks ARO

Add to Cart

Product Details
Company Profile

1000mm 2000 Rpm Through Bore Slip Ring Integrate High Frequency Fiber Signal

1000mm 2000 Rpm Through Bore Slip Ring Integrate High Frequency Fiber Signal

LPT series are through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can

also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber

brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current

is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.

Electronic & Electruc			Mechanical
Circuits	Total	6CKT	Working Speed	0~2000rpm
	Detail	6X2A	Inner Diameter	Φ12.7mm
Rating Voltage		240VAC	Contact Material	Gold-Gold
Dielectric Strength		500VAC@50Hz	Housing Material	Engineering plastic
Insulation Resistance		≥300MΩ@300VDC	Lead Wire Length	Stator:300mm Rotor:300mm
Environment			Remarks
Working Temperature		-20°C~+125°C	Application	/
Working Humidity		≤60%RH	Other	/
IP		IP50	Note:"P" stands dor power, "S" stands for signal

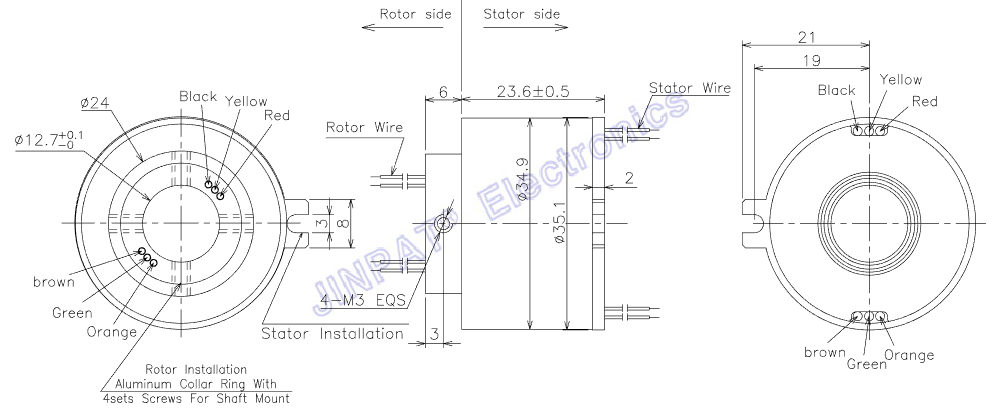

LPT012B-0602-HS-HT-Outline Drawing

Features:

Transmit analog and digital signal
The power and signal are mixed transmitted, and the signal categories are as follows:
Ethernet: Rate (10Mbps/100Mbps/1000Mbps)
Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.
HD video: SDI, LVDS, etc.
Serial communication: RS232, RS485, RS422, etc.
Universal Serial Bus: USB2.0
Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.
Sensor signal: thermal resistance, thermocouple, strain gauge, etc.
Long service life, maintenance-free
Easy to install

Main Applications:
Industrial automation equipment/Medical equipment/Wind power equipment/Test equipment/Exhibition /
display equipment/Robots/Turntable equipment/Amusement equipment/High-speed railway equipment/Packaging
machinery/Ship offshore equipment/Construction machinery
