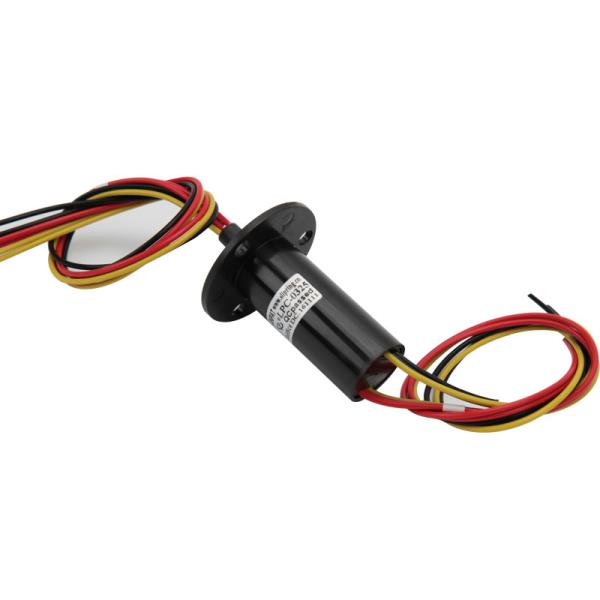

    300 Rpm High Speed Slip Rings IP40 25A Contact Material Gold To Gold

    Ask Lasest Price
    Brand Name : JINPAT
    Model Number : LPC-0325-03S(JP23-141-02)
    Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS
    Price : Negotiable
    Payment Terms : T/T, C/C, Paypal
    Supply Ability : 500 units/week
    Delivery Time : 2 weeks ARO
    • Product Details
    • Company Profile

    300 Rpm High Speed Slip Rings IP40 25A Contact Material Gold To Gold

    300 Rpm High Speed Slip Rings IP40 25A Contact Material Gold To Gold


    JINPAT LPC-0325-03S is a special capsule slip ring model with built-in thermostat. This is a slip ring model with three 25A channels, which is relatively high compared with other slip ring of the capsule slip ring series. A larger power capacity usually means it might generate more heat during operation. To ensure a stable and smooth rotation and power transmission, LPC-0325-03S is integrated with a build-in thermostat, so there are 3 LM35 circuits. With the thermostat, this capsule slip ring is able to endure low and high temperature that ranges from -20 to 80 degree centigrade. With built-in thermostat, the slip ring can adjust itself to the fittest temperature and therefore guarantee the stable electrical performances. LPC-0325-03S slip ring is a perfect model for small application with rotary power transmission demands. With IP40 protection grading, this slip ring is a competitive model in demanding environment.


    Product outline drawing



    Product parameter table


    Electrical & Electronics

    Mechanical


    Number of
    Circuits
    7CKTRotating
    Speed
    0-300rpm
    3Circuits*25A /
    3Circuits*LM35
    Rating Voitage240V AC/DCContact
    Material
    Gold-to-gold
    Insulation
    Resistance
    ≥500MΩ@50Hz(P)
    ≥100VAC@50Hz(S)
    Housing
    Material
    Engineering Plastics
    Dielectric Strength≥100VAC@200VDC(P)
    ≥10MΩ@100VDC(S)
    Lead Wire LengthStator:250±5mm
    Rotor:250±5mm
    Environment

    Remarks

    Working TEmperature-20℃~+60℃

    Application


    /
    Working Humidity≤60%RH

    Other


    /
    IP40Note:"P"stands for power,"S"stands for signal.

    The LPM micro-capsule slip ring can integrate 30 or more circuits, and the optional outer diameter is 12.5mm~16mm. This series adopts advanced military surface treatment technology, featuring high precision, compactness and easy assembly. The gold-to-gold contact ensures low resistance and long service life. Representative models: LPM 04A / 06A / 12F / 18C / 24A / 30A, etc. It can integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, FireWire, SDI and HDMI, etc. In addition, various non-standard slip rings can be customized.
