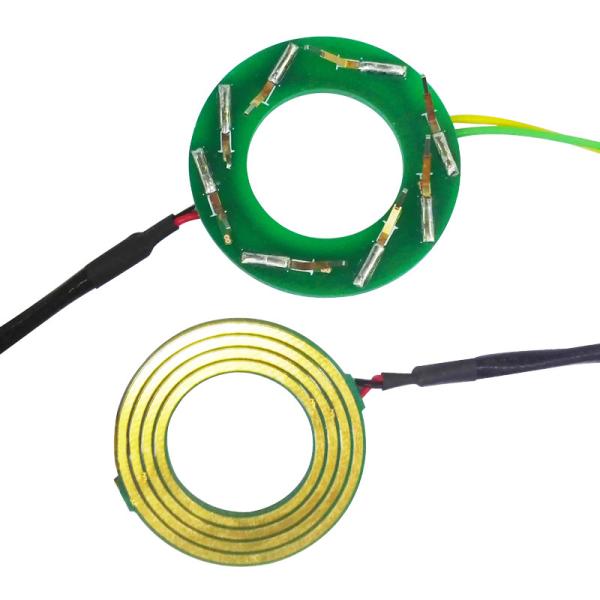

JINPAT pancake slip ring series (LPK series) generally adopts
advanced fiber brush technology, and it is mainly used for precision equipment for transmitting
current and signal between rotating platform and stationary
platform. Its process manufacturing and principle is to transmit the current,
signal and other data from the fixed position to the rotating
position through the multi-contact contact between the brush and the loop. JINPAT LPK series has been featured with low torque, low loss and
maintenance-free; low electrical noise, long life, etc. According to customer requirements, we can customize the slip ring
with different parameters such as shaft diameter, current, voltage, wire length, terminal
type, circuits, speed and protection level.
Features and Avantages
l Military materials and manufacturing processes
l Stable performance, helping the equipment to transmit signals more
accurately
l Long life, high protection, slip ring maintenance free
l Easy installation
l Low torque, extremely low electrical noise, low resistance, and no
friction
Specifications
| Electrical & Electronics | Mechanical |
| Circuits | Total : 3 circuits ; 3*5A | Rotating Speed | 0~8rpm |
| Rating Voltage | 24VDC | Contact Material | Gold To Gold |
| Dielectric Strength | 300VAC@50Hz | Housing Material | FR-4 |
| Insulation Resistance |
300MΩ@300VDC (P) | Wire Length |
Stator: 300mm
Rotor: 300mm |
| Dynamic Resistance Fluctuation Value | 35MΩ |
| Lead Wire Size | USB 3.0/Microphone lead | / |
| Environmental | Others |
| Temperature | -20°C~+60°C | Life span | Customizable |
| Humidity | ≤60%RH | Note: "P" stands for power, "S" stands for signal |
| Protection grade | Customizable |
