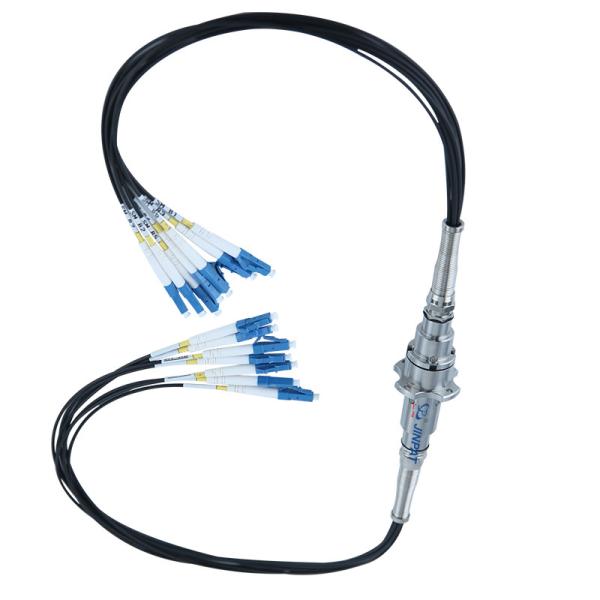

300rpm Fiber Optic Rotary Joint 3 Channel IP65 IP67 23dBm

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPFO-03N-A
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	T/T, C/C, Paypal
Supply Ability :	500 pieces / week
Delivery Time :	2 weeks ARO

Add to Cart

Product Details
Company Profile

300rpm Fiber Optic Rotary Joint 3 Channel IP65 IP67 23dBm

LPFO optical slip rings are also known as fiber optic rotary joints, optical rotatory connector. The optical slip ring adopts optical fiber as media. It offers the best solution to transmit great capacity data and signals. The optical slip ring can be integrated with traditional electrical slip rings. The hybrid slip ring model is able to transmit power, signals and high speed data.

LPFO-03N-A Fiber Optic Slip Ring

Number of Circuits 3

Lead Size Φ26/Φ38*119

Wavelength range 850-1550

Insertion loss ＜4dB

Insertion loss ripple ＜2dB

Return Loss ＞40

Optional Single can be customized,housing material and driving connector are optional

Consult immediately

DetailInstallationReview(0)

Specifications
Fiber types	MM(50/125um or 62.6/125um)	Jacket types	2.0mm/armor
Channel number	3	Connector types	FC/SC/ST/LC(PC or APC)
Wavelength range	SM:1310/1550nm MM:850/1300nm	Estimated life cycle	＞100 million revolutions
Insertion loss	＜4dB	Vibration	MIL-STD-167-1A
Insertion loss ripple	＜2dB	Mechanical shock	MIL-STD-810G
Return loss	SM:≥40dB MM:≥25dB	IP rating	IP65 or IP67
Crosstalk	≥50dB	Max Optical power	23dBm
Maximum speed	300rpm	Package style	Pigtails on both ends
Working temperature	-20~+65℃(Industrial grade) -45～+75℃ (Military grade)	Weight, approx	200g(No tail cable andconnection included)
Storage temperature	-55~+85℃

Product Outline Diagram
