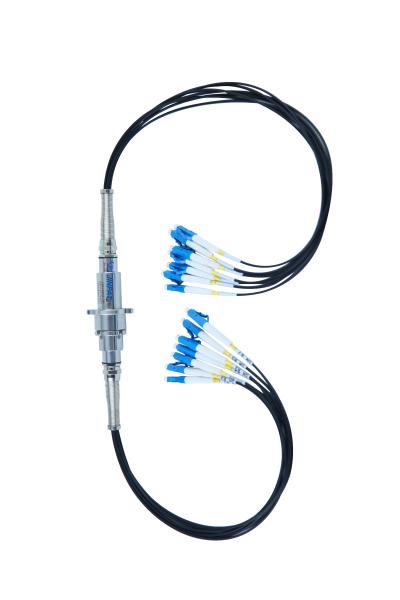

Dual Channel Optical Rotary Joint 300rpm IP65

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPFO-02N-A
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS

Add to Cart

Product Details
Company Profile

Dual Channel Optical Rotary Joint 300rpm IP65

LPFO optical slip rings are also known as fiber optic rotary joints, optical rotatory connector. The optical slip ring adopts optical fiber as media. It offers the best solution to transmit great capacity data and signals. The optical slip ring can be integrated with traditional electrical slip rings. The hybrid slip ring model is able to transmit power, signals and high speed data.

Specifications
Fiber types	SM(9/125um) MM(50/125um or 62.6/125um)	Jacket types	2.0mm/armor
Channel number	2	Connector types	FC/SC/ST/LC(PC or APC)
Wavelength range	SM:1310-1550nm MM:850/1300nm	Estimated life cycle	＞100 million revolutions
Insertion loss	＜4dB	Vibration	MIL-STD-167-1A
Insertion loss ripple	＜2dB	Mechanical shock	MIL-STD-810G
Storage temperature	-55~+85℃	Package style	Pigtails on both ends
Return loss	SM:≥40dB MM:≥25dB	IP rating	IP65 or IP67
Crosstalk	≥50dB	Max Optical power	23dBm
Weight, approx	200g(No tail cable andconnection included)	Maximum speed	300rpm
Working temperature	-20~+65℃(Industrial grade) -45～+75℃ (Military grade)

Product Outline Diagram
