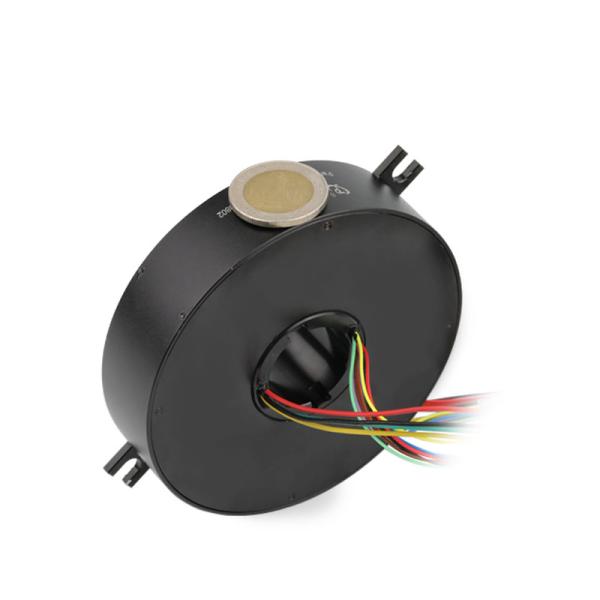

    Through Bore Slip Ring 6 Circuit 10A IP51Voltage 240VAC Low Torque

    Ask Lasest Price
    Brand Name : JINPAT
    Model Number : LPK025-0610
    Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS
    Price : Negotiable
    Payment Terms : TT/CC/Paypal
    Supply Ability : 50K units/week
    Delivery Time : 2 weeks ARO5
    • Product Details
    • Company Profile

    Through Bore Slip Ring 6 Circuit 10A IP51Voltage 240VAC Low Torque


    Integral Pancake Slip Rings
    ModelApplication area
    LPK025-0610Industrial Automation

    Advantages
    • Super thin, only 25mm, especially designed for applications with limited axial installation space,
      maintenance-free
    • Low torque, two precise bearings, smooth operation
    • Adopts advanced imported brush shrapnel to achieve longer service life
    Features
    • 6 channels for current, 10A each
    • Two precise rolling bearings contribute to low torque
    • Demonstrates high precision, excellent transmit performance, smooth and reliable operation

    Electrical & ElectroniMechanicalEnviromental
    Number of
    circuits
    		6CKTRotating speed0~100rpm or higherTemperature-40°C~+80°C
    Current10A/signal(optional)
    Contact
    material
    		Precious metalHumidity≤60%RH
    Voltage240VAC/DC
    Shell
    material
    		Aluminum alloy
    Protection
    Grade
    		IP51
    Dielectric
    strength
    		500VAC@50HzTorque0.3N.m(for reference
    Others
    Insulation
    resistance
    		≥500MΩ@500VDCWire TypeOptional
    Life Span
    Can be customized
    Dynamic Contact
    Resistance
    		≤30mΩ(at 50rpm)
    Wire Length
    Stator side:300mm
    Rotor side:300mm

    Outline drawings
