LPT060 Series Slip Ring Through Bore 60mm

LPT060-110 Series Slip Ring Through Bore 60mm can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

A slip ring is also called a rotary electrical interface, collector, swivel or a commutator. A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires dangling from movable joints.

The 60mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount.

The LPT060-110 uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.

In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT060-110 features field serviceable brush blocks.

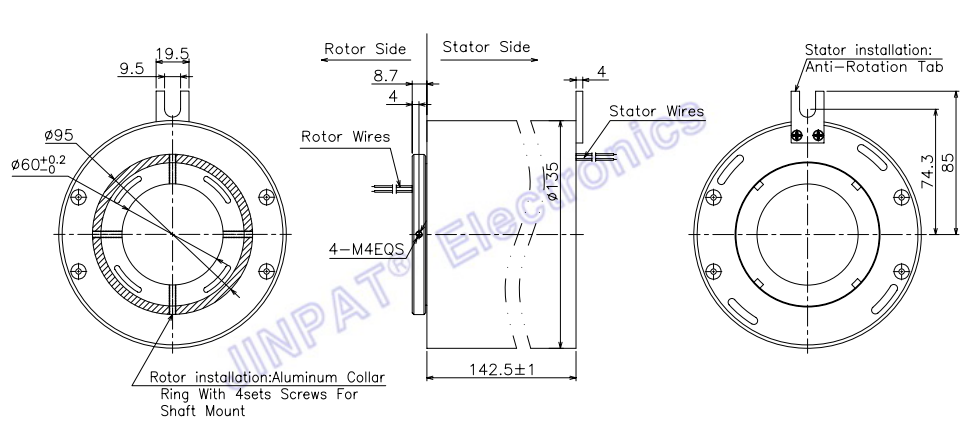

Product outline drawing
