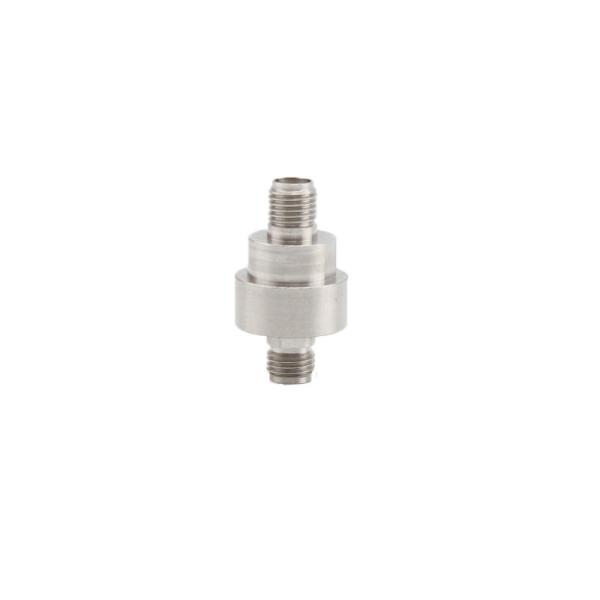

RF Rotary Slip Ring Description
RF rotary joint is used in devices that rotate continuously, and
transmit high frequency and high speed rate signal from stationary
part to rotating part. This kind of slip ring is compact in
structure and easy to integrate into other devices. It is reliable
in performance and excellent in shielded effect.
Meanwhile, RF coaxial connector also enjoys a good function of
processing signal besides the performance that mentioned above. For
example, Filtering, phase-modulation, frequency mixing,
attenuation, detection and so forth. Furthermore, the low VSWR and
wastage could better satisfy the needs of weapon system and precise
measurement instrument.
Specification
| Channel | 1 |
| Frequency Range | DC to 18GHz |
| SVWR, max | 1.20@ 0 to 6GHz; 1.25@ 6 to 12GHz; 1.35@ 12 to 18 GHz |
| SVWR Variation | 0.03 |
| Insertion Loss | 0.25 dB@ 0 to 6GHz; 0.35dB@6 to 12GHz; 0.50dB @12 to 18GHz |
| Insertion Loss Variation | 0.04dB |
| Phase, max | 1° |
| Peak power, max | 1500W |
| Average power, max | 200W@1 GHz; 30W@18GHz |
| Working Speed, max | 100 RPM |
| Connector Type | SMA Female (50Ω) |
| Contact Material | Beryllium copper |
| Connector Material | Stainless steel |
| Axial Load of End Surface, max | ±2N |
| Radial Load of End Surface, max | ±2N |
| Starting Torque | 0.5Ncm, max |
| Working Torque | 1Ncm, max |
| Weight | 10g |
| Working Temperature | -40~+70℃ |
| Humidity | 85% |
| Protection Grade | IP40 |
| Life | 0.5 million revolutions |
Company Introduction
JINPAT Electronics, founded since 1996, is a leading manufacturer
of slip rings, who has been committed to developing and
manufacturing a large variety of industrial slip rings applied to
many fields. Typical products like Capsule Slip Ring, Through-bore
Slip Ring, Large-current Slip Ring, Coax Rotary Joint, Fiber Optic
Slip Ring, Separate Slip Ring, Pin Slip Ring are off-the-shelf
units. Besides of these, customization is supported to cater to
different application in that electrical rotary joints can be
designed exclusively for Ethernet, USB, HDMI, Sensor, CAN Bus,
Thermocouple, RS232, RS422 and so forth. All the products have been
secured by our quality management system, certificated by the
IS09001:2008/ ISO14001:2015.
