Through Hole Slip Ring 12 Circuit 15A 60% RH Below Via Diameter 50mm IP44

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPT050-1215
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	TT/CC/Paypal
Supply Ability :	100K units/week
Delivery Time :	2 weeks ARO

Add to Cart

Product Details
Company Profile

Through Hole Slip Ring 12 Circuit 15A 60% RH Below Via Diameter 50mm IP44

We JINPAT cable reel slip ring LPT series suit for the application of crane. Like the slip rings LPT025/LPT038/LPT050 and so on.

LPT050-1215 hallow shalft slip ring features 12 circuits and 15 A per circuit. It uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT050 features field serviceable brush blocks.

Specification
Circuits	1-24 circuits
Operating Speed	0-300rpm
Working Temperature	-20℃~ +60℃
Working Humidity	60%RH or higher
Electrical:
Voltage Rating	240VAC/DC or higher
Current Rating	2A/5A/10A/15A per circuit
Dielectric Strength	≥1000V@50Hz between each circuit
Insulation Resistance	50MΩ@ 500VDC
Electrical Noise	30mΩ Min
Mechanical:
Contact Material	Precious metal
Lead Wire Length	Standard 300mm (11.811inch)
Housing Material	Aluminum alloy
Torque	≤9.25 g·m (for reference )
Protection	IP44 or higher

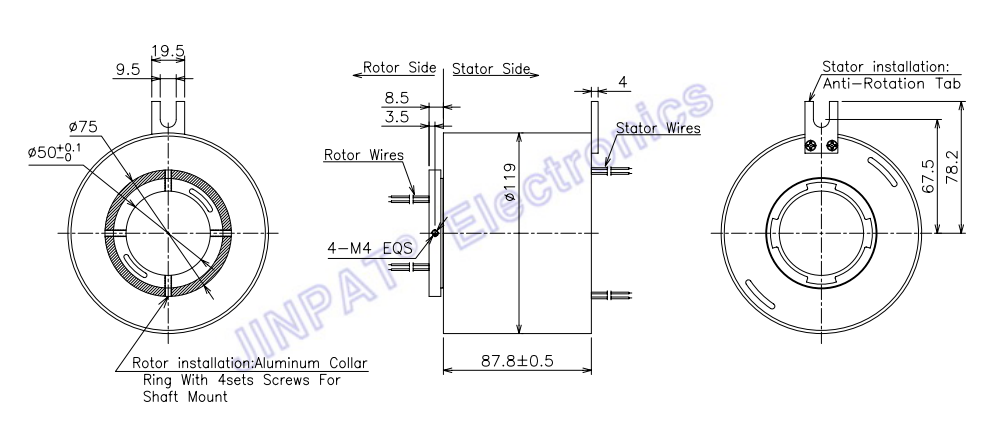

Product outline drawing

Advantages
