Diameter 38.1mm Rotary Joint Slip Ring 6 Circuit 15A 240VAC

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPT038-0615
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	TT/CC/Paypal
Supply Ability :	100K units/week
Delivery Time :	2 weeks ARO

Add to Cart

Product Details
Company Profile

Diameter 38.1mm Rotary Joint Slip Ring 6 Circuit 15A 240VAC

The LPT038-0615 aims at special application requirements of wind power generation system, JINPAT designed for wind power equipment manufacturers a variety of wind power slip ring, which is widely used in power generation 600KW - 5MW wind power system.

Standard product power circuits,Gigabit Ethernet signal or other signals can be custom.Please leave a message tell us your special needs!

Specification
Circuits	6circuits
Operating Speed	0-300rpm
Working Temperature	-20~ +60
Working Humidity	60%RH or higher
Voltage Rating	240VAC/DC or higher
Current Rating	15A per circuit
Dielectric Strength	≥1000V@50Hz between each circuit
Insulation Resistance	500MΩ/ 500VDC
Via diameter	38.1mm
Contact Material	Precious metal
Housing Material	Aluminum alloy
Protection	IP44 or higher

Product outline drawing

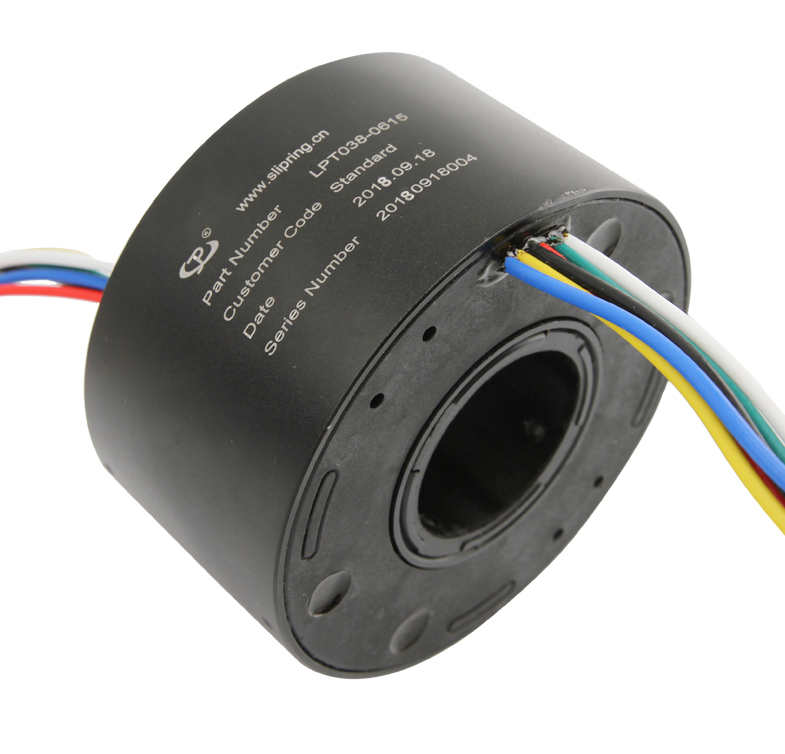

Product Image
