JINPAT Hollow Slip Ring 6 Circuit 15A

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPT025-0615
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	TT/CC/Paypal
Supply Ability :	100K units/week
Delivery Time :	2 weeks ARO

Add to Cart

Product Details
Company Profile

JINPAT Hollow Slip Ring 6 Circuit 15A

A through bore can be used to mount the slip ring on a bracket or used for routing hydraulic lines, pneumatic lines. Multi-contacting can ensure contacting reliable with low wear.

The internal diameter of this series of slip ring is 25mm. It's 22 circuits models and 6 circuits for signal transmission. It can transmit 15A per wire. From its appearance, it's very compact, can be used in large machinery equipment.

Main specifications

Model	Through bore slip ring
Through hole diameter	25.4mm
Voltage	240VAC/DC
Current rating	15A per wire
Contact material	Precious metal
Protection grade	IP54 or higher
Working speed	0~300rpm

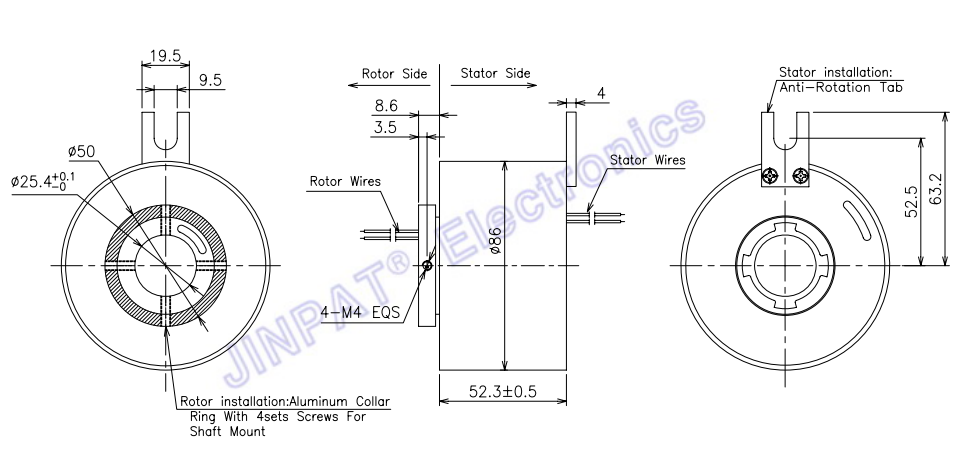

Product outline drawing

Product Image

Product Tags:

rotating slip ring

hollow shaft slip ring

JINPAT Hollow Slip Ring 6 Circuit 15A
