Through Hole Slip Ring Precious Metal Contact 12 Circuits 10A 240 VAC/DC

Ask Lasest Price
Brand Name :	JINPATI
Model Number :	LPT025-1210
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	TT/CC/Paypal
Supply Ability :	100K units/week
Delivery Time :	2 weeks ARO

Add to Cart

Product Details
Company Profile

Through Hole Slip Ring Precious Metal Contact 12 Circuits 10A 240 VAC/DC

Description

The LPT025-1210 slip ringcan be used in any electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. The slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals.

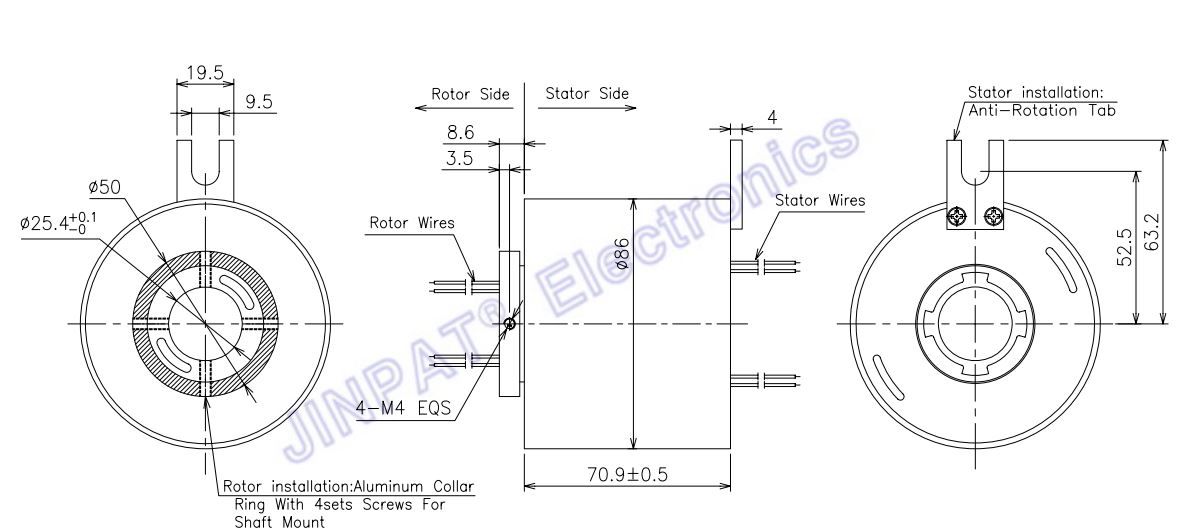

Outline Drawing

Specification

Circuits	12
Current Rating	10A
Voltage	240 VAC/DC
Dielectric Strength	1000V@50Hz between circuits
Insulation	500MΩ@500VDC
Hole Diameter	25.4 mm
Working Speed	0~300 RPM
Contact	Precious metal
Housing	Aluminum alloy
Wire Length	300mm (rotor), 300mm (stator)
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	IP54

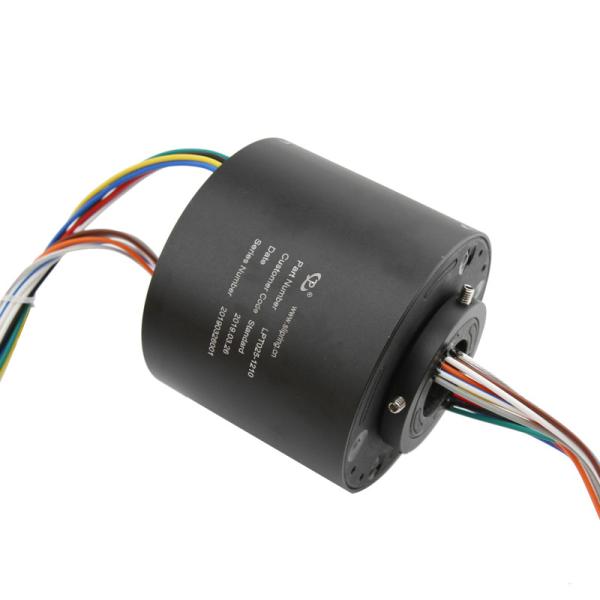

Product Display
