Through Hole Hollow Slip Ring Precious Metal Contact Material Easy To Install

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPT038-1215
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	TT/CC/Paypal
Supply Ability :	100K units/week
Delivery Time :	2 weeks ARO

Add to Cart

Product Details
Company Profile

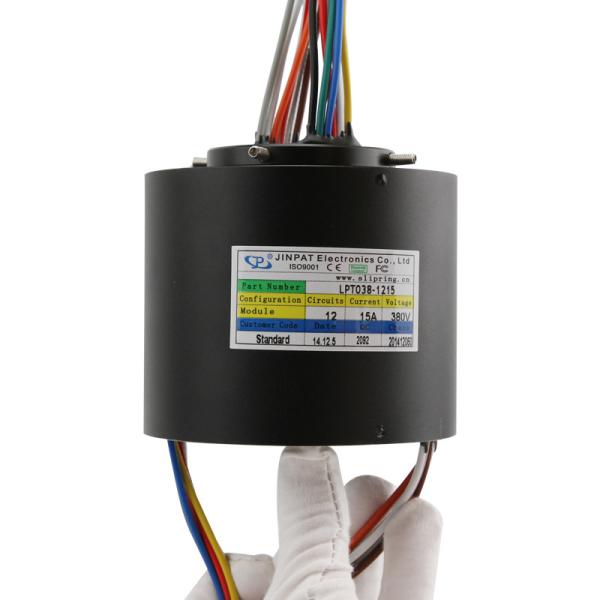

Through Hole Hollow Slip Ring Precious Metal Contact Material Easy To Install

The LPT038-1215 through bore slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

The part is LPT038 series slip ring that has a hole of φ38.1mm. It cn transmit 10A current in 12 circuits. Adopting advanced fiber brush technology, the part has a reliable performance with stable conatct and good conductivity.

Specification

Circuits	12
Current Rating	15A
Voltage	240 VAC/DC
Dielectric Strength	≥1000V@50Hz between circuits
Insulation	500MΩ@500VDC
Hole Diameter	38.1 mm
Working Speed	0~300 RPM
Contact	Precious metal
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	IP54

Outline Dimension

Through Hole Hollow Slip Ring Precious Metal Contact Material Easy To Install

Product Display

Through Hole Hollow Slip Ring Precious Metal Contact Material Easy To Install
