2-1000 Amps Rotary Joint Slip Ring 10 A Per Wire Precision Ball Bearings

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPT038-1210
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	TT/CC/Paypal
Supply Ability :	100K units/week
Delivery Time :	2 weeks ARO

Add to Cart

Product Details
Company Profile

2-1000 Amps Rotary Joint Slip Ring 10 A Per Wire Precision Ball Bearings

Specification

Circuits	12
Current Rating	10A
Voltage	240 VAC/DC
Dielectric Strength	≥1000V@50Hz between circuits
Insulation	≥500MΩ@500VDC
Hole Diameter	38.1 mm
Working Speed	0~300 RPM
Contact	Precious metal
Housing	Aluminum alloy
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	IP54

Outline Dimension

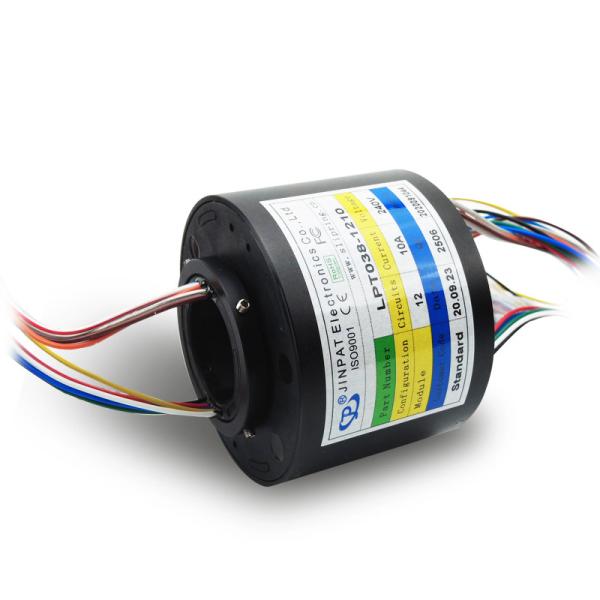

Product Display
