JINPAT Compact Capsule 3D Scanner Silp Ring Transmit LVDS signals

Description

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

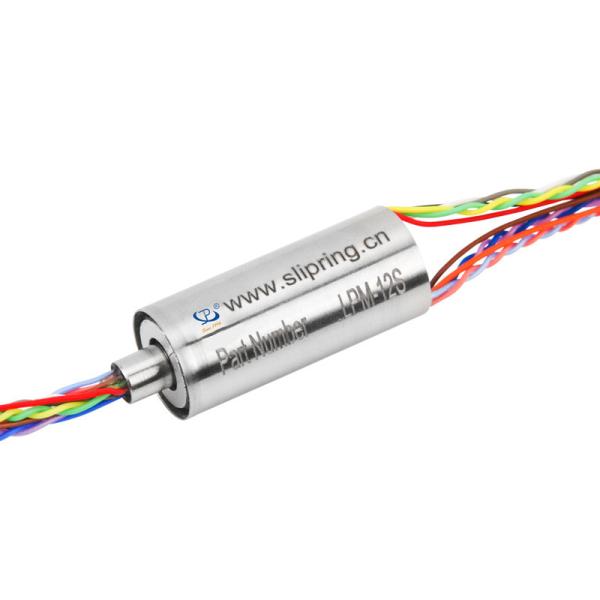

Based on miniature slip ring, JINPAT R&D team developed a new signal slip ring: LPM-12S, which uses twisted pair to transmit a variety of signals. The miniature slip ring has a total of 12 circuits, of which 6 circuits are used to transmit LVDS signals, 4 circuits are used to 2A current, as well as 2 circuits for other signals.

In order to achieve small size and lightweight, the miniature slip ring adopts special stainless alloy as the housing material. For its size, the slip ring has been designed with a diameter of 12.8mm and length of 30mm. Besides, due to gold to gold contact, the longer service lifetime is up to 100 million turns. And the slip ring has a low operating voltage of only 7VAC/DC.

Application Picture

JINPAT Electronics, founded in 1996, is a national high-tech enterprise specializing in R&D, manufacturing and sales of high-precision slip rings. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring.

Besides, customization is supported to cater to the different application in that slip ring can be designed exclusively integrated with Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth.
