12 Circuits Customized Slip Ring 240VAC IP54

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPT025-1205
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	TT/CC/Paypal
Supply Ability :	100K units/week
Delivery Time :	2 weeks ARO

Add to Cart

Product Details
Company Profile

12 Circuits Customized Slip Ring 240VAC IP54

Description

The LPT025-1205 slip ringcan be used in any electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. The slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals.

Specification

Circuits	12
Current Rating	5A
Voltage	240 VAC/DC
Dielectric Strength	1000V@50Hz between circuits
Insulation	500MΩ@500VDC
Hole Diameter	25.4 mm
Working Speed	0~300 RPM
Contact	Precious metal
Housing	Aluminum alloy
Wire Length	300mm (rotor), 300mm (stator)
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	Protection Grade

Outline Drawing

12 Circuits Customized Slip Ring 240VAC IP54

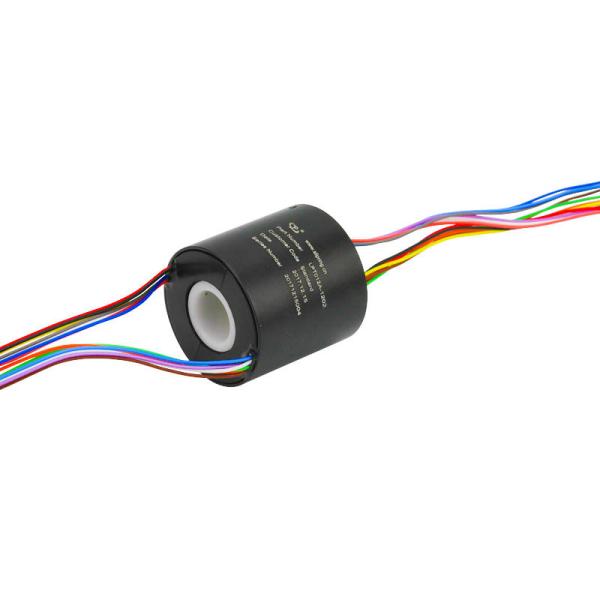

Product Display

12 Circuits Customized Slip Ring 240VAC IP54
