Single Channel Slip Ring/ Rotary Joint Lightweight with Beryllium
Copper Contact for Vehicle Turrets
Description

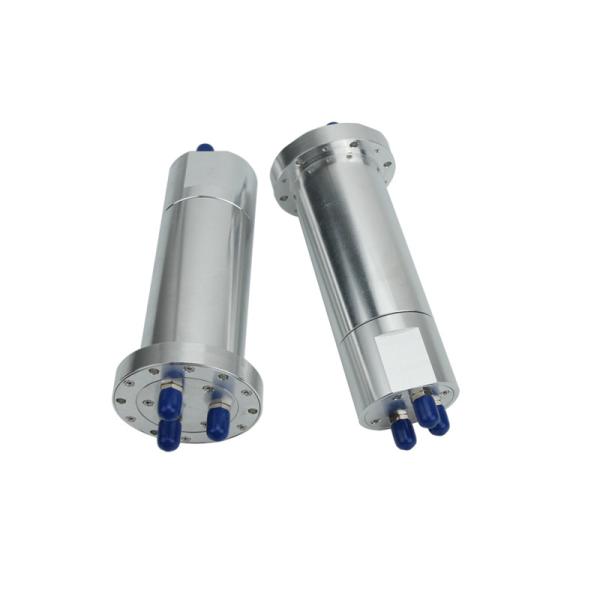

LPFH-03A 3-channel high-frequency rotary joint, with 3-in 3-out
coaxial rotary joint, the highest frequency of each channel is
2Ghz,
high-frequency slip ring is a product specially developed for high-
speed serial digital signal or analog signal transmission.
Optional: Mixable power supply power,
24V control signal, communication signal, power supply, fluid air
water and other media mixing slip ring.
High-frequency waveguide signals are suitable for occasions that
cannot be interrupted:
such as various military radars, shipborne satellite communication
devices, vehicle satellite communication equipment, satellite
vehicles, emergency rescue command vehicles, high-end robots,
rotating turrets on vehicles, remote control systems, radars
Antennas,
medical systems, video surveillance systems, national or
international security systems, submarine operation systems,
emergency lighting equipment, robots, exhibition/display equipment,
etc.
| Specifications |
| Channel | CH1 | CH2 | CH3 | Starting Torque | 0.6Nm@room
temperature |
| Interface Tpe | SMA-K(50Ω) | SMA-K(50Ω) | SMA-K(50Ω) | Continuous Rotational Torque | 0.6Nm@room
temperature |
| Type | I | I | I | Rotating Speed,Max. | 30rpm |
| Frequenc Range | DC-2GHz | DC-2GHz | DC-2GHz | Life Time,Min | 5 million Revolutions |
| Average Power,Max. | 30W@1GHz | 10W@1GHz | 10W@1GHz | Body Material | Alumillion Revolutions |
| VSWR,Max | 1.5 | 1.5 | 1.5 | Case surface finish | Chromate conversion coat |
| Weight,approx | 0.5KG |
| VSWR WOW | 0.2 | 0.2 | 0.2 | IP Protection Level | IP40 |
| Insertion Loss,Max. | 1.0dB | 1.0dB | 1.0dB | Operation Temperature | -55~+80°C |
Insertion Loss WOW | 0.15dB | 0.15dB | 0.15dB | Storage Temperature | -55~+85°C |
| Isolation,min | 50dB | Humidity (Operation) | 95％ |
| Humidity(Storage) | 95％ |
