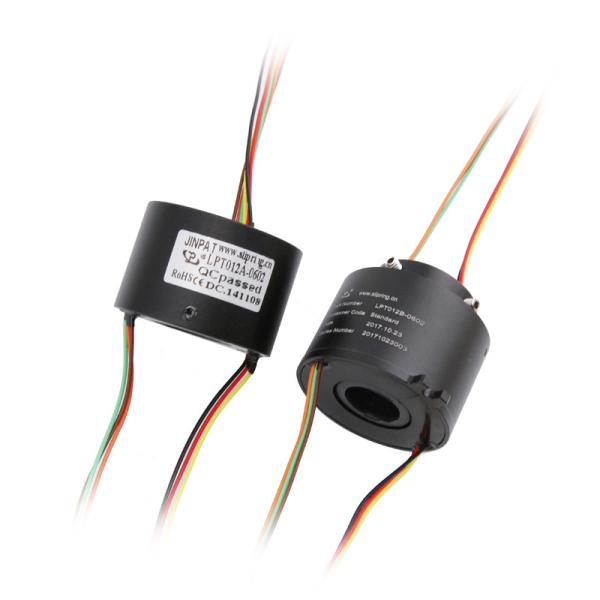

    6 Circuits Through Bore Slip Rings 240V AC 10A 300rpm

    Ask Lasest Price
    Brand Name : JINPAT
    Model Number : LPT025-0610
    Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS
    Price : Negotiable
    Payment Terms : T/T, C/C, Paypal
    Supply Ability : 500 pieces/week
    Delivery Time : 2 weeks ARO
    • Product Details
    • Company Profile

    6 Circuits Through Bore Slip Rings 240V AC 10A 300rpm

    The high-performance slip ring of automatic packaging machinery developed by JINPAT adopts multi-strand combination of imported fiber brush wires to ensure reliable contact under low brush pressure, long service life, 24 hours of continuous rotation, maintenance-free, no lubrication, 360 degree connection rotation transmission power and data signals (including analog, digital, serial port, thermocouple signals, etc.).


    JINPAT packaging machinery slip ring has a unique design scheme for the thermocouple signal transmission of placement machine and packaging machine, and has been verified by many customers at home and abroad to ensure accurate temperature measurement, high temperature resistance and high reliability.


    The contact material is imported from abroad, and the surface treatment is based on military-grade coating technology, which can be customized according to customer needs.

    Specifications


    Electrical & ElectronicsMechanical
    CircuitsTotal : 6 circuits ; 6*10ARotating Speed0~300rpm
    Rating Voltage240VAC/DCContact MaterialGold To Gold
    Dielectric Strength1000VAC@50HzHousing MaterialAluminum Alloy
    Insulation Resistance
    ≥500MΩ@500VDC (P)
    Wire Length
    Stator: 300mm
    Rotor: 300mm
    EnvironmentalOthers
    Temperature-20°C~+60°CLife spanCustomizable
    Humidity≤60%RHNote: "P" stands for power, "S" stands for signal
    Protection gradeIP40

    Outline Drawing
