LPT012 Series Through Hole Slip Rings
This unit can be used in any electromechanical system that requires
unrestrained, continuous rotation while transferring power or data
from a stationary to a rotating structure. It is also called a
rotary electrical interface, commutator, collector, swivel or an
electrical rotary joint. It can improve electromechanical
capability, simplify system design, eliminate possible damage while
rotating. It’s the key apparatus of various precision rotary
worktable, electric test instrument, manufacture and process
control instrument.
The LPT012 provides an economical, readily available solution when
a compact through-bore configuration is required. This unit
provides a 12.7mm through-bore for routing hydraulic or pneumatic
lines and a compact 55mm outside diameter for minimal space
applications. The 5 amps /circuit are available in 6, 12, 18 and 24
ring configurations in 4 housing length. Similar in design to our
very popular LPT012 series, this design features long life, fiber
brush contact technology for ultimate performance in many
challenging applications. Fiber brushes do not require lubrication
and produce virtually no wear debris, for maintenance free, life
time operation.
| Electronic & Electruc | Mechanical |
| Circuits | Total | 30CKT | Working Speed | 0~300rp |
| Detail | 30X2A | Inner Diameter | Φ12.7mm |
| Rating Voltage | 240VAC/ DC | Contact Material | Precious Metal |
| Dielectric Strength | 500VAC@50Hz | Housing Material | Aluminum Alloy |
| Insulation Resistance | ≥500MΩ@500VDC | Lead Wire Length | Stator:300mm Rotor:300mm |
| Environment | Remarks |
| Working Temperature | -20°C~+60° | Other | / |
| Working Humidity | ≤60%RH |

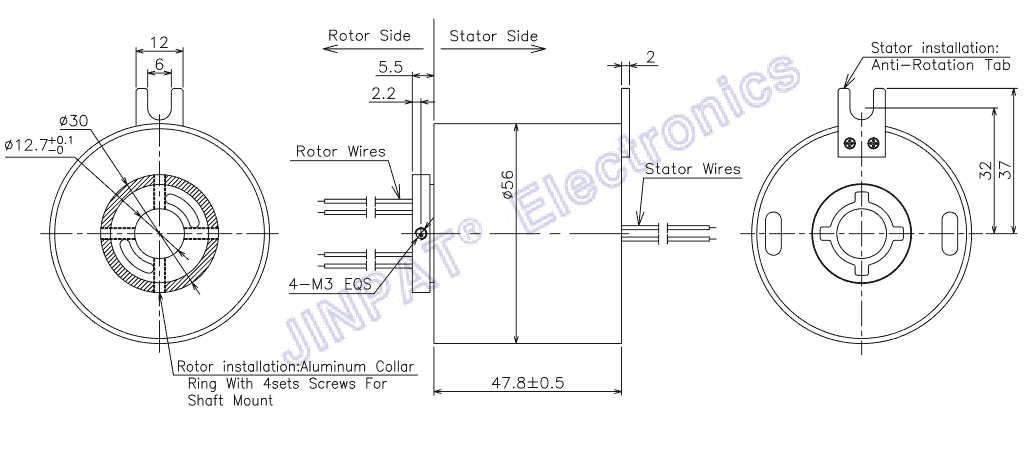

LPT012-0605-Outline Drawing
LPT012-0610-Outline Drawing
LPT012-1205-Outline Drawing
LPT012-1210-Outline Drawing
LPT012-1805-Outline Drawing
LPT012-1810-Outline Drawing
LPT012-2405-Outline Drawing
LPT012-2410-Outline Drawing
