Precious Metal Through Hole Slip Ring JINPAT 350rpm IP65

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPT060-1405
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	TT/CC/Paypal
Supply Ability :	1000 units/week
Delivery Time :	2 weeks ARO

Add to Cart

Product Details
Company Profile

Precious Metal Through Hole Slip Ring JINPAT 350rpm IP65

Through Bore Slip Ring With 20-50 Amps Circuits

Slip rings enable the transfer of electric power or signal across a rotating part, such as those

found in radar antennae, gun turrets, periscopes, electro-optic sensor gimbals and space satellites. The sliding contact is established by a brush that presses against a metal ring. The “brush” looks like a brush made from metal fibers, but more often it looks like a single wire or a spring with a pad of material affixed to the end that contacts the ring. This LPT060 slip ring with through bore size 60 mm, it can combine with power,signal,Ethernet,USB,Control Net,CANBUS, PROFIBUS, It could also be mounted by shaft or optional flange mounting.

Electronic & Electruc			Mechanical
Circuits	Total	6CKT	Working Speed	0~350rp
	Detail	14X5A	Inner Diameter	Φ60mm
Rating Voltage		240VAC/ DC	Contact Material	Precious Metal
Dielectric Strength		1000VAC@50Hz	Housing Material	Aluminum Alloy
Insulation Resistance		≥500MΩ@500VDC	Lead Wire Length	Stator:300mm Rotor:300mm
Environment			Remarks
Working Temperature		-20°C~+60°	Other	/
Working Humidity		≤60%RH

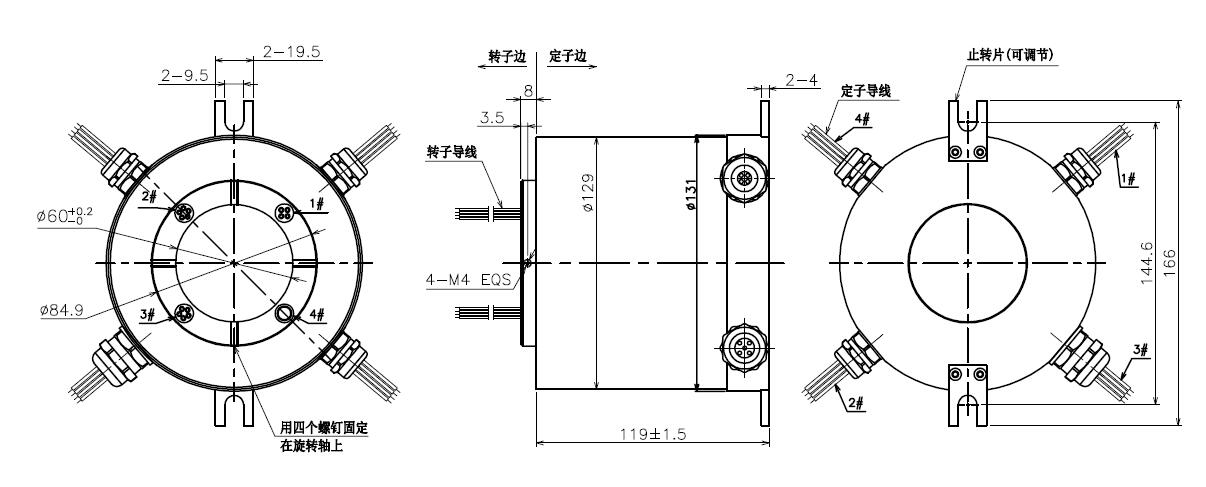

LPT060-0605-Outline Drawing

LPT060-0610-Outline Drawing

LPT060-0615-Outline Drawing

LPT060-1205-Outline Drawing

LPT060-1210-Outline Drawing

LPT060-1215-Outline Drawing

LPT060-1405-Outline Drawing

LPT060-1805-Outline Drawing

LPT060-1810-Outline Drawing

LPT060-1815-Outline Drawing

LPT060-2405-Outline Drawing

LPT060-2410-Outline Drawing
