    Through Bore Slip Ring Rotating Connector 300rpm 6 Circuits 5A

    Ask Lasest Price
    Brand Name : JINPAT
    Model Number : LPT150
    Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS
    Price : Negotiable
    Payment Terms : TT/CC/Paypal
    Supply Ability : 1000 units/week
    Delivery Time : 2 weeks ARO
    • Product Details
    • Company Profile

    Through Bore Slip Ring Rotating Connector 300rpm 6 Circuits 5A

    Multiple Through Bore Slip Ring Rotating Connector 300rpm 6 Circuits 5A

    Electronic & ElectrucMechanical
    CircuitsTotal6CKTWorking Speed0~300rp
    Detail6X5AInner DiameterΦ150mm
    Rating Voltage240VAC/ DCContact MaterialPrecious Metal
    Dielectric Strength1000VAC@50HzHousing MaterialAluminum Alloy
    Insulation Resistance≥500MΩ@500VDCLead Wire Length

    Stator:300mm

    Rotor:300mm

    EnvironmentRemarks
    Working Temperature-20°C~+60°Other/
    Working Humidity≤60%RH

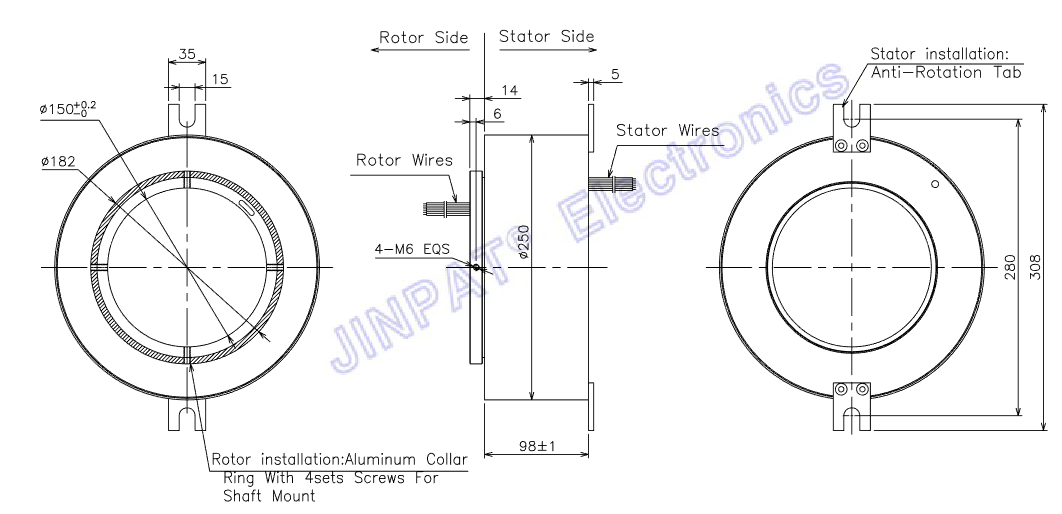

    LPT150-0605-Outline Drawing

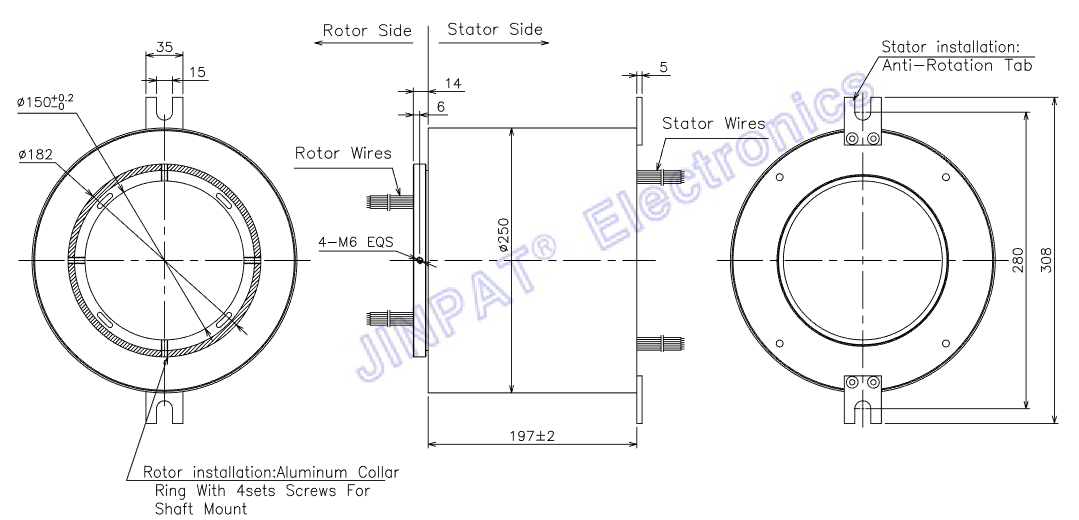

    LPT150-0610-Outline Drawing

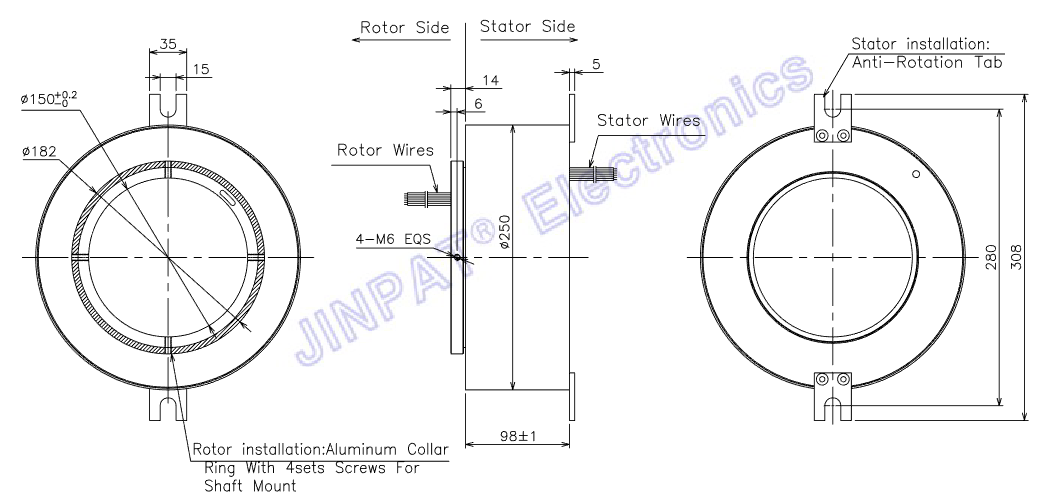

    LPT150-0615-Outline Drawing



    LPT150-1205-Outline Drawing



    LPT150-1210-Outline Drawing



    LPT150-1215-Outline Drawing



    LPT150-1805-Outline Drawing



    LPT150-1810-Outline Drawing



    LPT150-1815-Outline Drawing



    LPT150-2405-Outline Drawing



    LPT150-2410-Outline Drawing



    LPT150-2415-Outline Drawing
