LPT096 300rpm Through Hole Slip Ring Inner Diameter 96mm

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPT096
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	TT/CC/Paypal
Supply Ability :	1000 units/week
Delivery Time :	2 weeks ARO

Add to Cart

Product Details
Company Profile

LPT096 300rpm Through Hole Slip Ring Inner Diameter 96mm

The LPT096 uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris.

Electronic & Electruc			Mechanical
Circuits	Total	6CKT	Working Speed	0~300rp
	Detail	6X5A	Inner Diameter	Φ96mm
Rating Voltage		240VAC/ DC	Contact Material	Precious Metal
Dielectric Strength		1000VAC@50Hz	Housing Material	Aluminum Alloy
Insulation Resistance		≥500MΩ@500VDC	Lead Wire Length	Stator:300mm Rotor:300mm
Environment			Remarks
Working Temperature		-20°C~+60°	Other	/
Working Humidity		≤60%RH

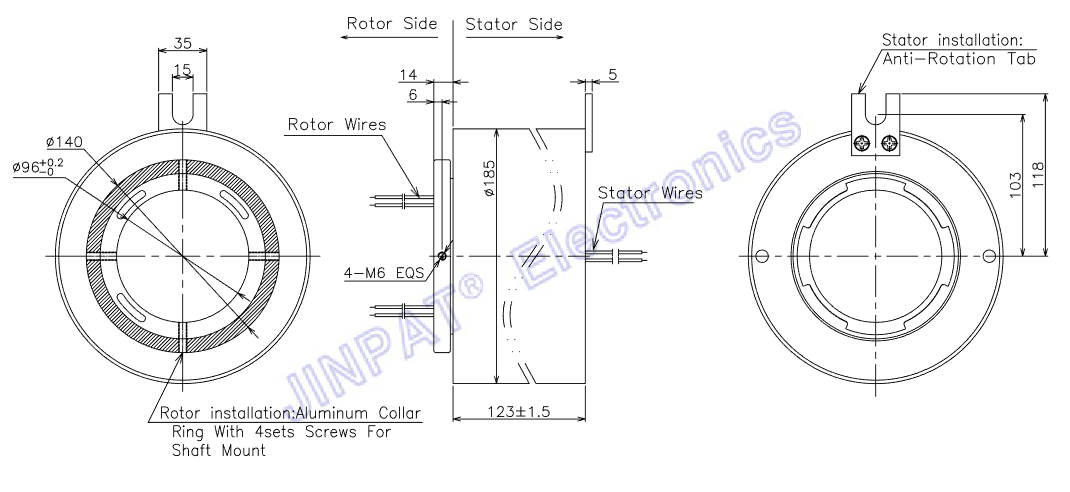

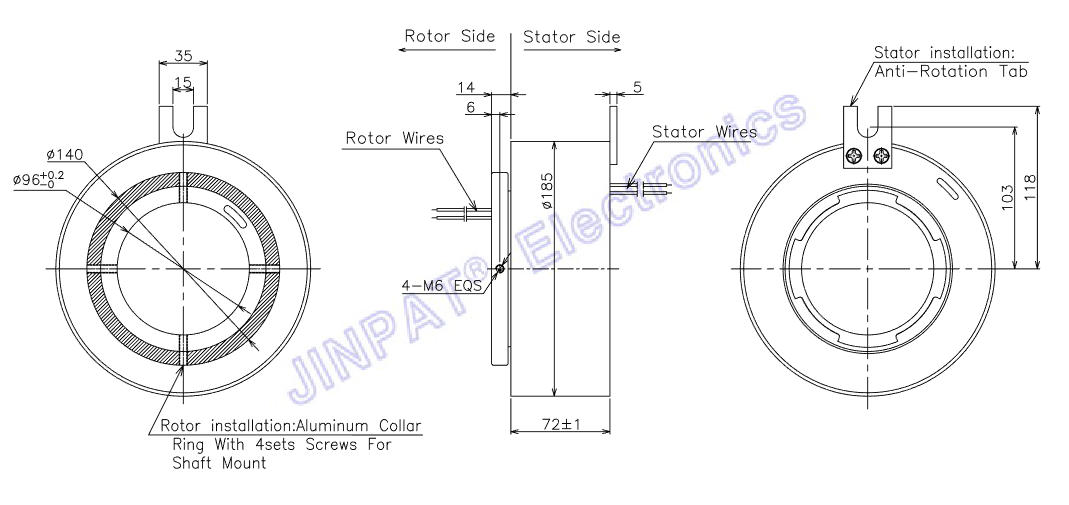

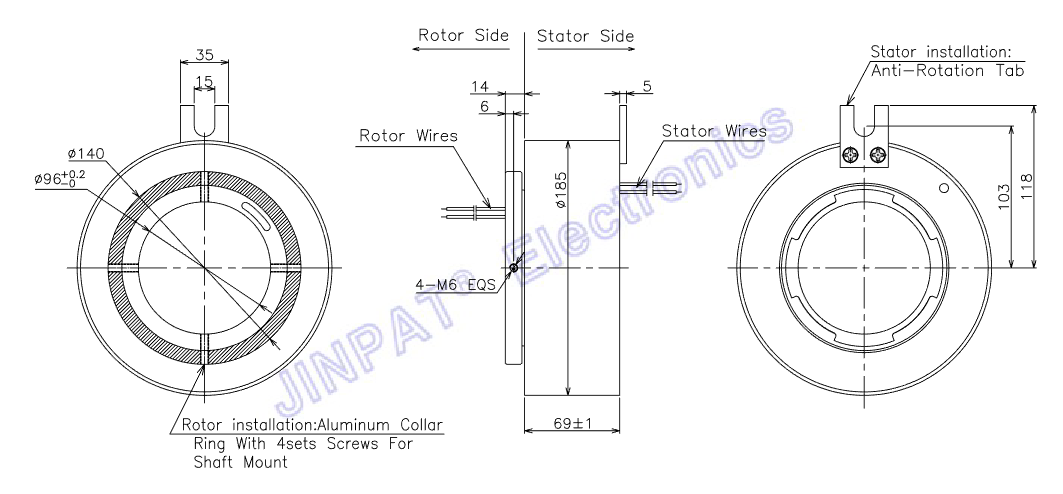

Outline Drawing
