120mm Pneumatic Through Bore Slip Ring 300rpm

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPT120
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	TT/CC/Paypal
Supply Ability :	1000 units/week
Delivery Time :	2 weeks ARO

Add to Cart

Product Details
Company Profile

120mm Pneumatic Through Bore Slip Ring 300rpm

120mm Pneumatic Through Bore Slip Ring 300rpm Aluminum Alloy Housing

LPT120-Through-bore Slip Rings

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector,

Electronic & Electruc			Mechanical
Circuits	Total	6CKT	Working Speed	0~300rp
	Detail	6X5A	Inner Diameter	Φ120mm
Rating Voltage		240VAC/ DC	Contact Material	Precious Metal
Dielectric Strength		1000VAC@50Hz	Housing Material	Aluminum Alloy
Insulation Resistance		≥500MΩ@500VDC	Lead Wire Length	Stator:300mm Rotor:300mm
Environment			Remarks
Working Temperature		-20°C~+60°	Other	/
Working Humidity		≤60%RH

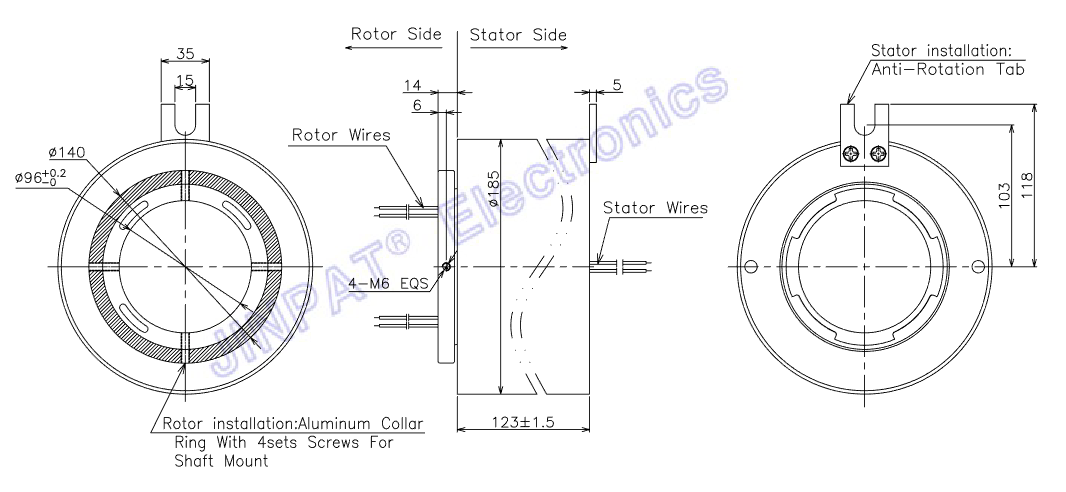

LPT120-0605-Outline Drawing

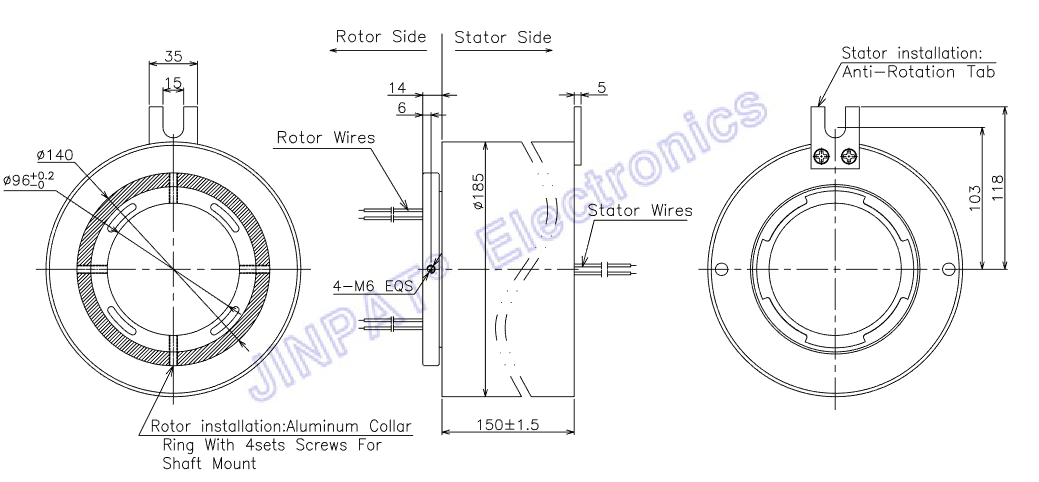

LPT120-0610-Outline Drawing

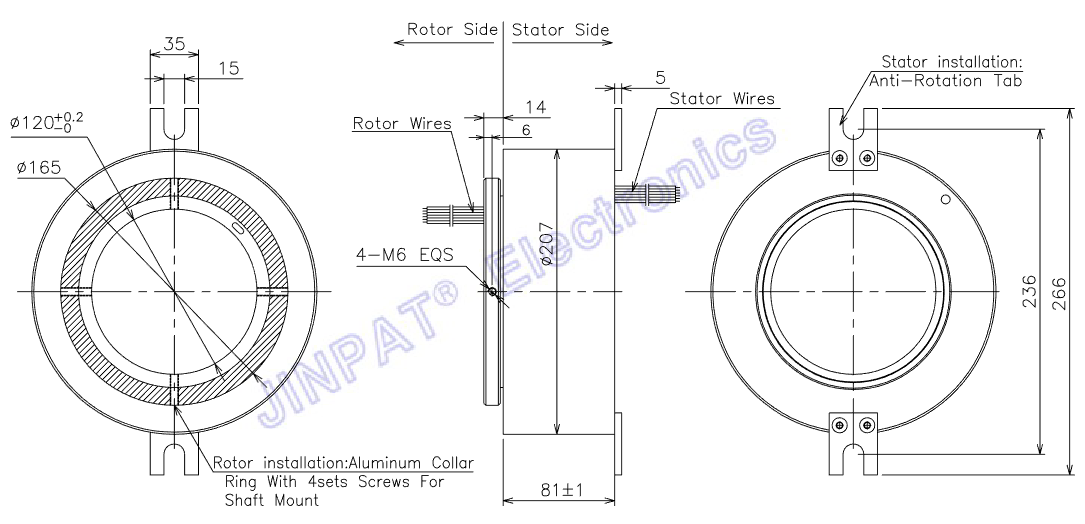

LPT120-0615-Outline Drawing

LPT120-1205-Outline Drawing

LPT120-1210-Outline Drawing

LPT120-1215-Outline Drawing

LPT120-1805-Outline Drawing

LPT120-1810-Outline Drawing

LPT120-1815-Outline Drawing

LPT120-2405-Outline Drawing

LPT120-2410-Outline Drawing

LPT120-2415-Outline Drawing

Product Tags:

120mm Through Bore Slip Ring

300rpm Through Bore Slip Ring

120mm pneumatic slip ring

120mm Pneumatic Through Bore Slip Ring 300rpm
