Electromechanical System LPT080 Electrical Rotary Joint 300rpm
Inner Diameter 80mm
A slip ring can be used in any electromechanical system that
requires unrestrained, continuous rotation while transferring power
and / or data from a stationary to a rotating structure. A slip
ring is also called a rotary electrical interface, collector,
swivel, or a rotary joint. A slip ring can improve system
performance by simplifying operations and eliminating damage-prone
wires dangling from movable joints.The 80mm unobstructed through
bore provides routing space for hydraulics, pneumatics or for a
concentric shaft mount.bore provides routing space for hydraulics,
pneumatics or for a concentric shaft mount.
The LPT080 uses our fiber brush technology which offers several
advantages over conventional slip ring contacts including multiple
points of contact per brush bundle, low contact force per fiber and
low contact wear rates. In addition, fiber brushes do not require
lubrication and produce virtually no wear debris. The LPT080
features field serviceable brush blocks LPT080-2415 through hole
slip rig features 24 circuits routing 15A per circuits.Transfer
current and various specific signal at the same time
(Ethernet, USBsignal, HDMI signal and so on).
| Electronic & Electruc | Mechanical |
| Circuits | Total | 6CKT | Working Speed | 0~300rp |
| Detail | 6X5A | Inner Diameter | Φ80mm |
| Rating Voltage | 240VAC/ DC | Contact Material | Precious Metal |
| Dielectric Strength | 1000VAC@50Hz | Housing Material | Aluminum Alloy |
| Insulation Resistance | ≥500MΩ@500VDC | Lead Wire Length | Stator:300mm Rotor:300mm |
| Environment | Remarks |
| Working Temperature | -20°C~+60° | Other | / |
| Working Humidity | ≤60%RH |

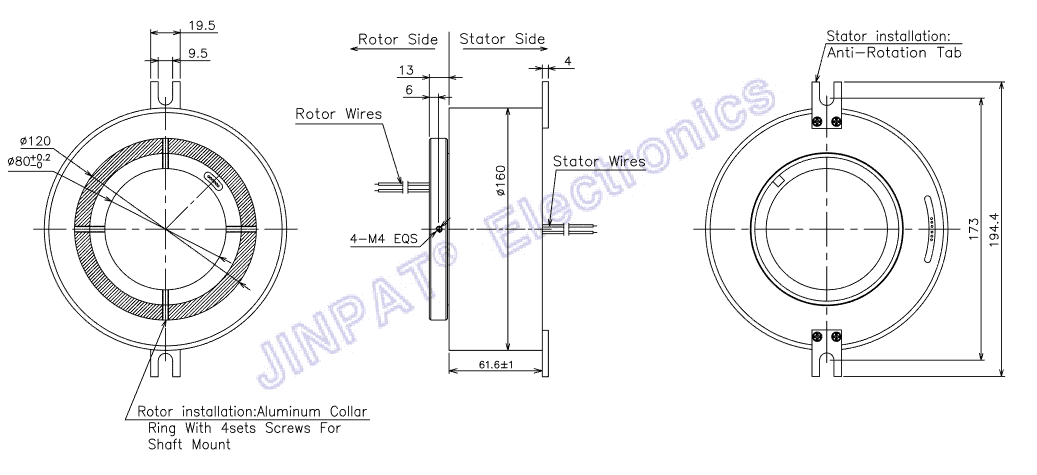

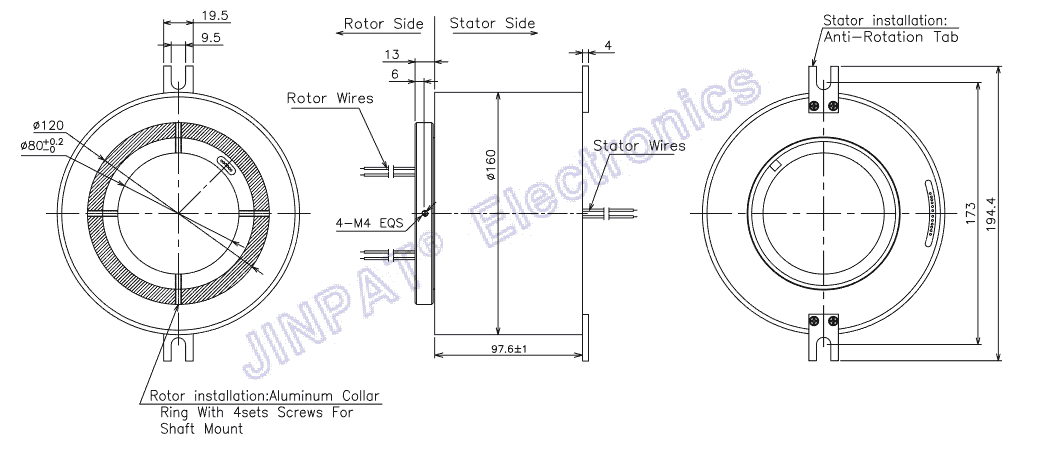

LPT080-0605-Outline Drawing
LPT080-0610-Outline Drawing
LPT080-0615-Outline Drawing
LPT080-1205-Outline Drawing
LPT080-1210-Outline Drawing
LPT080-1215-Outline Drawing
LPT080-1805-Outline Drawing
LPT080-1810-Outline Drawing
LPT080-1815-Outline Drawing
LPT080-2405-Outline Drawing
LPT080-2410-Outline Drawing
LPT080-2415-Outline Drawing
Frequently Asked Questions
What do we do?
We focus on developing, designing and manufacturing high-quality
slip rings, and offer various solutions for rotating systems.
How long have we been in the business?
JINPAT has entered into slip rings business since 1996 with
thousands of customers accepting our products or services. JINPAT
can offer the right solutions to you.
Whom with us?
We have been cooperating and making breakthroughs in different
industries. Our expertise can meet various requirements and
standards as well as those in the military.
Why should I choose precious metal rather than mercury for
contacts?
The primary reason is safety. Mercury is, of course, a toxic
substance, so if your application involves food manufacturing or
processing, pharmaceutical equipment, or any other use where
contamination could be a serious threat, your choice should be
precious metal contacts. As we all know, the leakage of mercury and
the resultant contamination could.
Notes:
The operating life of the unit depends upon temperature, rotation
speed, and environment. Contact us on wire color codes. We can not
display more information on the website for sake of keeping trade
secrets. Please send your request for more solutions to us via
email.
If you want to know more details about JINPAT Slip Rings, Please
contact JINPAT, our sales engineers will provide you with
recommendations or customizations.
