60mm 300 rpm Through Bore Electrical Slip Ring

Through Bore Slip Ring With 20-50 Amps Circuits

Slip rings enable the transfer of electric power or signal across a rotating part, such as those

found in radar antennae, gun turrets, periscopes, electro-optic sensor gimbals and space satellites. The sliding contact is established by a brush that presses against a metal ring. The “brush” looks like a brush made from metal fibers, but more often it looks like a single wire or a spring with a pad of material affixed to the end that contacts the ring. This LPT060 slip ring with through bore size 60 mm, it can combine with power,signal,Ethernet,USB,Control Net,CANBUS, PROFIBUS, It could also be mounted by shaft or optional flange mounting.

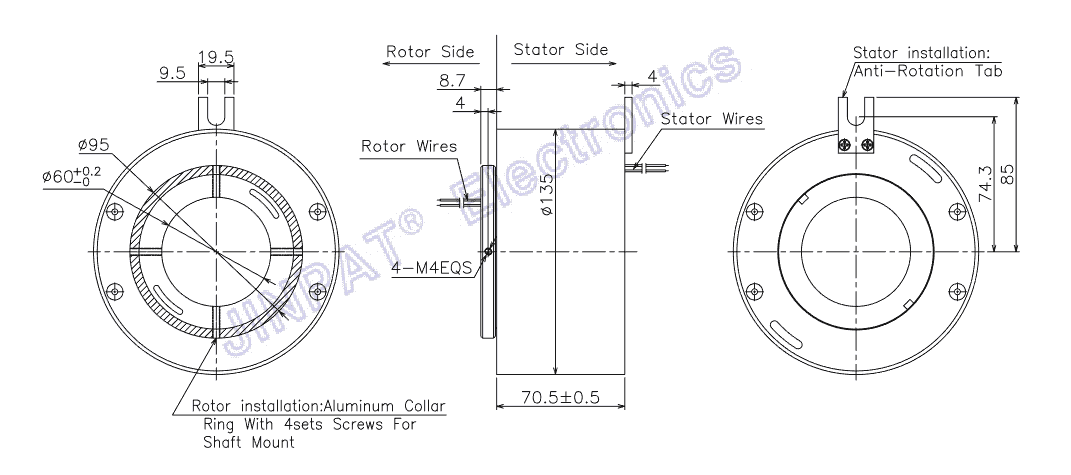

LPT060-0605-Outline Drawing

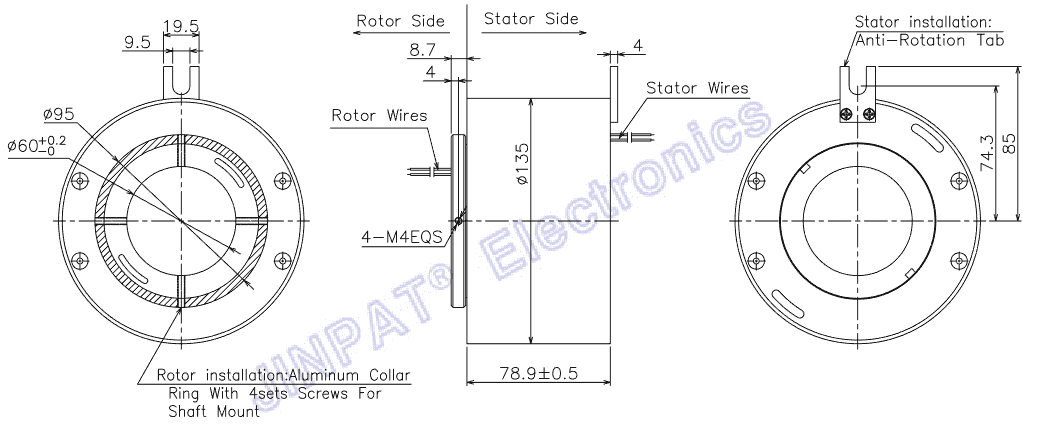

LPT060-0610-Outline Drawing

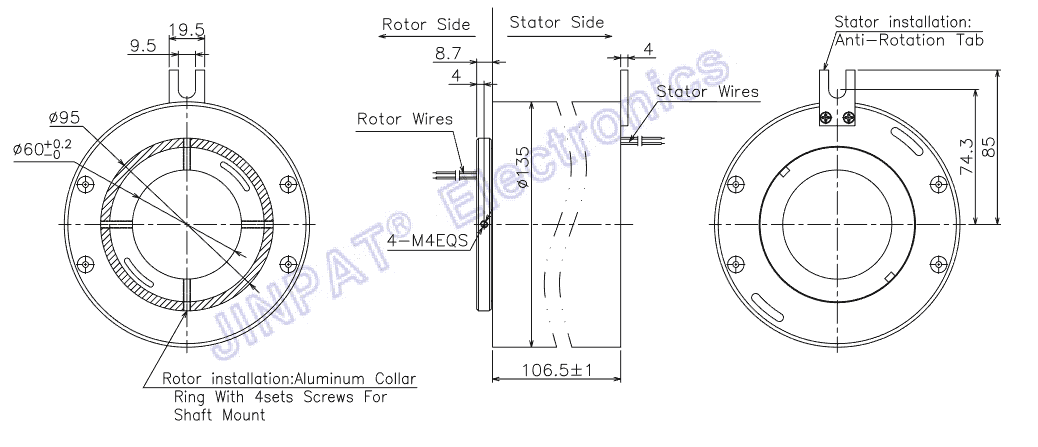

LPT060-0615-Outline Drawing

LPT060-1205-Outline Drawing

LPT060-1210-Outline Drawing

LPT060-1215-Outline Drawing

LPT060-1805-Outline Drawing

LPT060-1810-Outline Drawing

LPT060-1815-Outline Drawing

LPT060-2405-Outline Drawing

LPT060-2410-Outline Drawing

LPT060-2410-Outline Drawing
