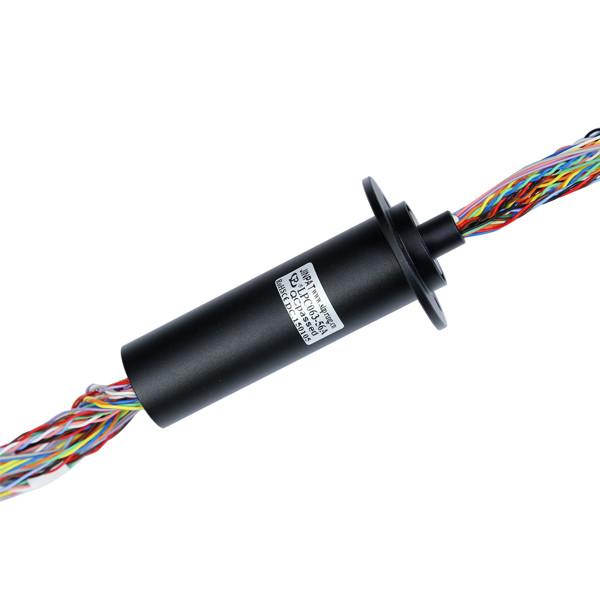

    Capsule Slip Ring 56 Circuits 2A LPC063-56A

    Ask Lasest Price
    Brand Name : JINPAT
    Model Number : LPC063-56A
    Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS
    Price : Negotiable
    Payment Terms : TT/CC/Paypal
    Supply Ability : 5K units/week
    Delivery Time : 2 weeks ARO
    • Product Details
    • Company Profile

    Capsule Slip Ring 56 Circuits 2A LPC063-56A

    56 Circuits 2A 240VDC Capsule Slip Ring Engineering Plastic Electrical Rotary Joint

    Description

    This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

    It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s a key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

    Product parameter table


    Electronic & ElectricMechanical
    CircuitsTotal56 CKT

    Working Speed

    0~300rpm
    Detail56x2AContact MaterialGold to Gold
    Rating Voltage240V AC/DCHousing MaterialEngineering plastics
    Dielectric Strength≥500VAC@50Hz(P) ≥100VAC@50Hz(S)Lead Wire LengthStator:250±5mm Rotor:250±5mm
    Insulation Resistance≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)

    Dynamic Resistance

    Fluctuation Value

    ≤35mΩ
    EnvironmentRemarks
    Working Temperature-20°C~+60°CApplication/
    Working Humidity≤60%RHOther/
    IP

    IP40

    Note: "P" stands for power, "S" stands for signal.

    LPC063-56A 2.jpg


    JINPAT LPC063-56A compact size slip ring shares the same number of channels with LPC-56A. The differences between the two model are basically their sizes and some properties. LPC063-56A capsule slip ring is shorter than LPC-56A, the former is only 63mm. Since it has a relatively smaller size at large, the rated voltage of LPC063-56A is 110V while the LPC-56, 220V. Meanwhile the rated current is lowered with a smaller insulation strength, which is 1.5A for each channel. If you are looking for capsule slip ring with powerful transmission capacity, JINPAT is the right company you should turn to. Contact us for more slip ring models catalogue.
