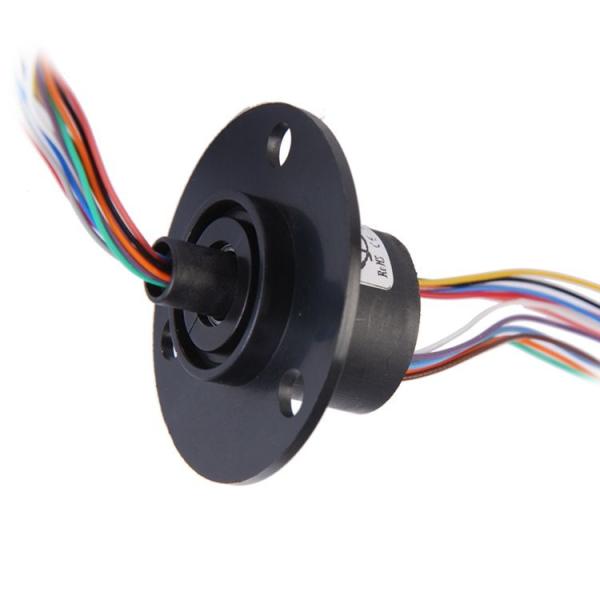

    Capsule Slip Ring 12 Circuits 2A 300 Rpm LPC-12A

    Ask Lasest Price
    Brand Name : JINPAT
    Model Number : LPC-12A
    Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS
    Price : Negotiable
    Payment Terms : TT/CC/Paypal
    Supply Ability : 50K units/week
    Delivery Time : 2 weeks ARO
    • Product Details
    • Company Profile

    Capsule Slip Ring 12 Circuits 2A 300 Rpm LPC-12A

    240 VAC/DC Electrical Slip Ring 12 Circuits 2A Per Circuit Up to 300 Rpm Rotating Speed,Free slip ring customization


    Description


    The Slip Rings Series, thanks to its extreme compactness, guarantees a low outer speed between rings and brushes, thus to reduce material consumption so as to enhance its lifetime.This Series has been designed keeping flexibility, cost-effectiveness, and reliability in mind.


    The LPC-12A capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.


    This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.


    LPC-12A provides smoother running, It is available in 6, 12 circuits model.


    Electronic & ElectricMechanical
    CircuitsTotal12 CKT

    Working Speed

    0~300rpm
    Detail12x2AContact MaterialGold to Gold
    Rating Voltage0~240V AC/DCHousing MaterialEngineering plastics
    Dielectric Strength≥500VAC@50Hz(P) ≥100VAC@50Hz(S)Lead Wire LengthStator:250±5mm Rotor:250±5mm
    Insulation Resistance≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)

    Dynamic Resistance

    Fluctuation Value

    ≤35mΩ
    EnvironmentRemarks
    Working Temperature-20°C~+60°CApplication/
    Working Humidity≤60%RHOther/
    IP

    IP40

    Note: "P" stands for power, "S" stands for signal.

    LPC-12A 2.jpg

    The operating life of the unit depends upon temperature, rotation speed, and environment.

    The operating life ≥50,000,000 runs ref.


    Outline Drawing


    Product display


    Product application
