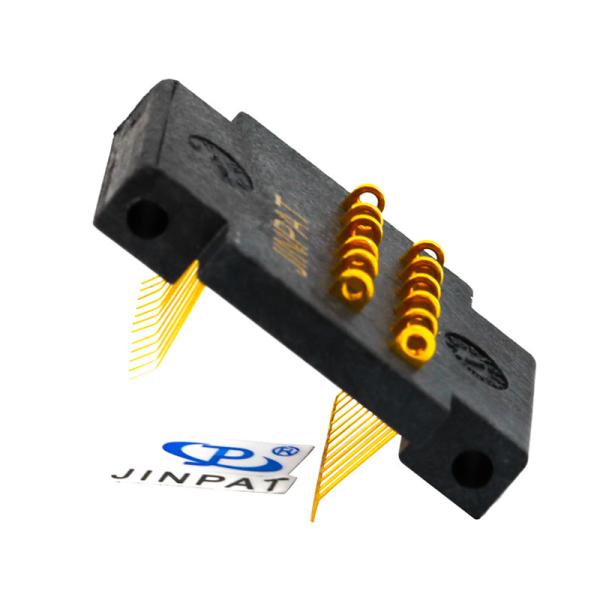

Super Miniature UAVs Separate Slip Ring 100 Rpm 12 Circuits

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPS-12
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	TT/CC/Paypal
Supply Ability :	500 pieces /week
Delivery Time :	2 weeks ARO

Add to Cart

Product Details
Company Profile

Super Miniature UAVs Separate Slip Ring 100 Rpm 12 Circuits

Super Miniature UAVs Separate Slip Ring 100 Rpm 12 Circuits Precious Metal

UAVs, Unmanned Aerial Vehicles, are not only playing an important part in the military industry, they are also coming into people’s everyday life. UAVs for aerial photographing are very popular at home and abroad. In this application, slip rings are essential components. Slip rings allow the camera devices to rotate while enabling transmission of video signals between the camera and the processor. JINPAT super miniature slip rings are perfectly fit for UAVs.

Operating Speed	0-100 rpm
Number of Circuits	12
Voltage	240 VAC/DC
Current Rating	1-3A
Temperature Range	-20℃ to +60℃
Working Humidity	60%RH or higher
Contact Material	Gold to Gold
Lead Size	28 # silver plated copper
Lead Length	Standard 250 mm (9.843inch)
Dielectric Strength	≥500 VAC @50Hz, between each circuit
Body Material	Precious metal
Insulation Resistance	1000 MΩ @ 500 VDC
Electrical Noise	1 mΩMin
