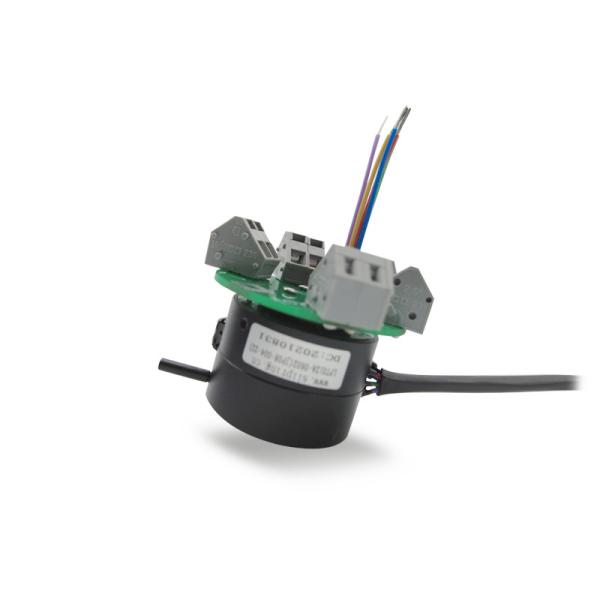

9X2A 220VAC Through Bore Electrical Slip Ring Multiple Slip Ring Models

through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.

LPT012A-0902 Realizing the 360° unrestricted continuous rotation of the swing arm not only solves the problem of twisting and twisting of the wire during rotation, but also increases the contact area by setting multiple contact surfaces and improves the stability. The utility model has the advantages of simple structure, convenient maintenance, safety, reliability, stability and high efficiency.

Product outline drawing

Feature Of Through Hole Slip Ring

• Transmit analog and digital signal
• The power and signal are mixed transmitted, and the signal categories are as follows:
• Ethernet: Rate (10Mbps/100Mbps/1000Mbps)
• Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.
• HD video: SDI, LVDS, etc.
• Serial communication: RS232, RS485, RS422, etc.
• Universal Serial Bus: USB2.0
• Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.
• Sensor signal: thermal resistance, thermocouple, strain gauge, etc.
• Long service life, maintenance-free
• Easy to install

JINPAT Electronics, founded in 1996, is a national high-tech enterprise specializing in R&D, manufacturing and sales of high-precision slip rings. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring.

Besides, customization is supported to cater to the different application in that slip ring can be designed exclusively integrated with Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth.
