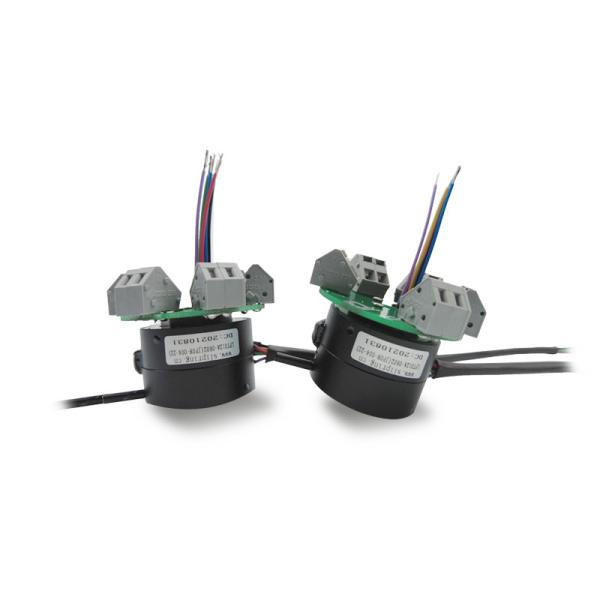

    300rpm 2A 9 Circuits Through Hole Slip Ring

    Ask Lasest Price
    Brand Name : JINPAT
    Model Number : LPT012A-0902
    Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS
    Price : Negotiable
    Payment Terms : T/T, C/C, Paypal
    Supply Ability : 500 pieces / week
    Delivery Time : 2 weeks ARO
    • Product Details
    • Company Profile

    300rpm 2A 9 Circuits Through Hole Slip Ring

    300rpm 2A 9 Circuits Through Hole Slip Ring Precious Metal Aluminum Alloy Housing


    through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.


    LPT012A-0902 Realizing the 360° unrestricted continuous rotation of the swing arm not only solves the problem of twisting and twisting of the wire during rotation, but also increases the contact area by setting multiple contact surfaces and improves the stability. The utility model has the advantages of simple structure, convenient maintenance, safety, reliability, stability and high efficiency.


    Electronic & ElectrucMechanical
    CircuitsTotal9 CKTWorking Speed0~300rpm
    Detail9X2AInner Diameter/
    Rating Voltage220VACContact MaterialPrecious Metal
    Dielectric Strength500VAC@50HzHousing MaterialAluminum Alloy
    Insulation Resistance≥300MΩ@300VDCLead Wire Length

    Stator:250mm

    Rotor:80mm

    EnvironmentRemarks
    Working Temperature-20°C~+60°CApplication/
    Working Humidity≤60%RHOther/
    IPIP54Note:"P" stands dor power, "S" stands for signal

    Product outline drawing
