    Rotary Joint Through Bore Slip Ring 6 Wires 5A With Hole Size 70 mm

    Ask Lasest Price
    Brand Name : JINPAT
    Model Number : LPT070-0605
    Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS
    Price : Negotiable
    Payment Terms : TT/CC/Paypal
    Supply Ability : 1000 units/week
    Delivery Time : 2 weeks ARO
    • Product Details
    • Company Profile

    Rotary Joint Through Bore Slip Ring 6 Wires 5A With Hole Size 70 mm

    Through Bore Slip Ring 6 Wires 5 A Per Ring With Hole Size 70 Mm

    LPT070-0605 through hole slip ring has features of 6 circuits 5A per ring , The 70mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount.

    Electro-Miniatures produces several series of Power Thru-Bore slip rings for use in high-current, high-power applications. Each design is optimized for specific current/circuit requirements.
    While the primary purpose of the slip ring design is to transfer power, each series can also carry a combination of analog, RF and digital signals.

    Specification
    Circuits1-24 circuits
    Operating Speed0-500rpm
    Working Temperature-20℃~ +60℃
    Working Humidity60%RH or higher
    Electrical:
    Voltage Rating380VAC/DC or higher
    Current Rating2A/5A/10A/15A per circuit
    Dielectric Strength≥1000V@50Hz between each circuit
    Insulation Resistance1000MΩ@ 500VDC
    Electric Noise≤1mΩ Min
    Mechanical:
    Contact MaterialPrecious metal
    Lead Wire LengthStandard 300mm (11.811inch)
    Housing MaterialAluminum alloy
    Torque≤9.25 g·m (for reference )
    ProtectionIP54 or higher

















    L---The length of through bore slip ring(mm)
    Part NumberCurrent/Circuit6 circuits12 circuits18circuits24 circuits
    LPT070(Inner diameter60mm)5A52.570.588.5106.5
    10A56.778.9101.1123.3
    15A61.588.5115.5142.5














    Dimension

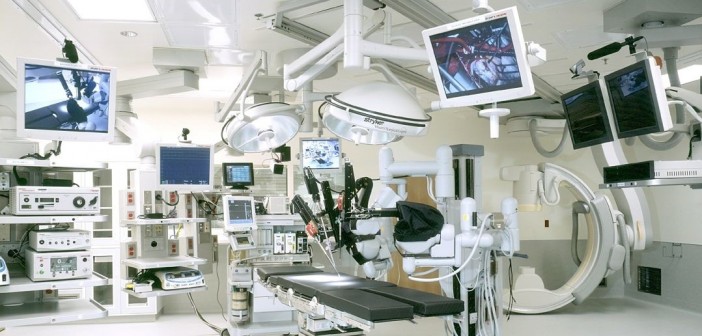

    Application Picture
