    96 mm Through Bore Slip Ring of 1~24 Circuits with 500rpm

    Ask Lasest Price
    Brand Name : JINPAT
    Model Number : LPT096 series
    Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS
    Price : Negotiable
    Payment Terms : TT/CC/Paypal
    Supply Ability : 1000 units/week
    Delivery Time : 2 weeks ARO
    • Product Details
    • Company Profile

    96 mm Through Bore Slip Ring of 1~24 Circuits with 500rpm

    96 mm Through Bore Slip Ring of 1~24 Circuits with 500rpm High Working Speed

    LPT096-2405 through hole slip ring has features of 24 circuits routing 5A per ring.The LPT096 Series provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 96.0mm through-bore for routing hydraulic or pneumatic lines and a compact 86mm outside diameter for minimal space applications. The 15 amps per circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing lengths. Similar in design to our very popular LPT096series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance-free, lifetime operation.

    This unit can be used in any electromechanical system that requires unrestrained, intermittent, or continuous rotation while transferring power or data.

    L---The length of through bore slip ring(mm)
    Part NumberCurrent/Circuit6 circuits12 circuits18circuits24 circuits
    LPT096(Inner diameter96mm)5A6996123150
    10A6996123150
    15A72102132162

    Specification
    Circuits1-24 circuits
    Operating Speed0-500rpm
    Working Temperature-20℃~ +60℃
    Working Humidity60%RH or higher
    Electrical:
    Voltage Rating380VAC/DC or higher
    Current Rating2A/5A/10A/15A per circuit
    Dielectric Strength≥1000V@50Hz between each circuit
    Insulation Resistance1000MΩ@ 500VDC
    Electrical Noise1mΩ Min
    Mechanical:
    Contact MaterialPrecious metal
    Lead Wire LengthStandard 300mm (11.811inch)
    Housing MaterialAluminum alloy
    Torque≤9.25 g·m (for reference )
    ProtectionIP54 or higher








    ​​

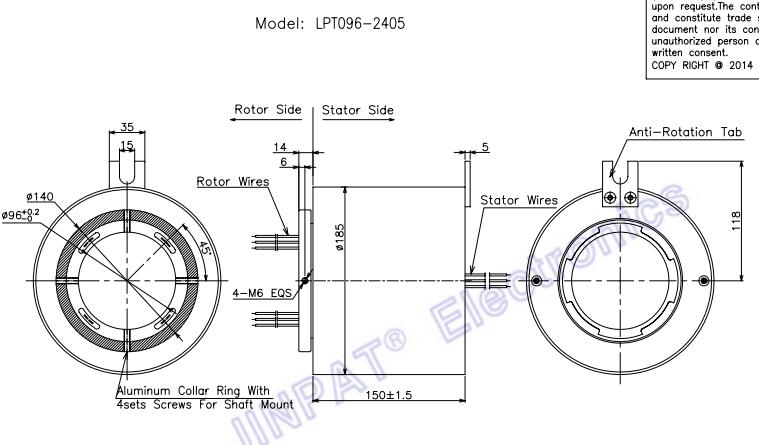

    Dimension


    Product Display

    Application Picture(Mobile phone screen production equipment )
