    Different Colored Housing Slip Rings A 38.1mm Through Bore

    Ask Lasest Price
    Brand Name : JINPAT
    Model Number : LPT038-0605
    Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS
    Price : Negotiable
    Payment Terms : TT/CC/Paypal
    Supply Ability : 1000 units/week
    Delivery Time : 2 weeks ARO
    • Product Details
    • Company Profile

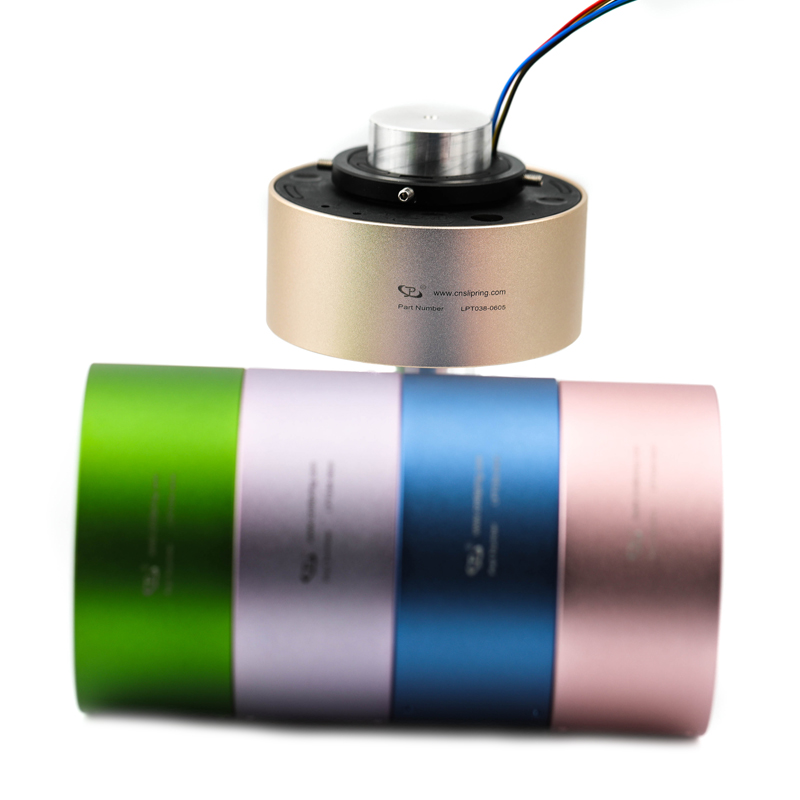

    Different Colored Housing Slip Rings A 38.1mm Through Bore

    Different-Colored Housing Slip Rings with a 38.1 mm Through Bore
    Description

    The LPT038 provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 38.1mm through-bore for routing hydraulic or pneumatic lines and a compact 86mm outside diameter for minimal space applications. The 15 amps per circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing lengths.

    LPT038-0605 through bore slip ring features 6 circuits routing 5A per wire.Similar in design to our very popular LPT038 series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance-free, lifetime operation.

    Specification
    Circuits6 circuits
    Operating Speed0-500rpm
    Working Temperature-20℃~ +60℃
    Inner diameter38.1mm
    Outside diameter86 mm
    Working Humidity60%RH or higher
    Electrical:
    Voltage Rating380VAC/DC or higher
    Current Rating5A per circuit
    Dielectric Strength≥1000V@50Hz between each circuit
    Insulation Resistance1000MΩ@ 500VDC
    Electrical Noise1mΩ Min
    Mechanical:
    Contact MaterialPrecious metal
    Lead Wire LengthStandard 300mm (11.811inch)
    Housing MaterialAluminum alloy
    Torque≤9.25 g·m (for reference )
    ProtectionIP54 or higher






























    Dimension




    Product Display
