12.7mm Through Hole Slip Ring Transmitting Current and Signal for Sweeping Robots

Description

LPT012 series through hole slip ring has researched and developed to be high speed, long lifetime typical union. Smaller the body length, more superior the performance.
It provides routing space for hydraulics, pneumatics or for a concentric shaft mount. It uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris.
Test speed up to 2000rpm, service life to be 170000000rpm
Test speed up to 6000rpm, service life to be 44000000rpm
Test speed up to 10000rpm, service life to be 19500000rpm

Advantage

Multi-contacting can ensure contacting reliable with low wear
Applied in many rigorous applications
Low torque minimizes system torque budget

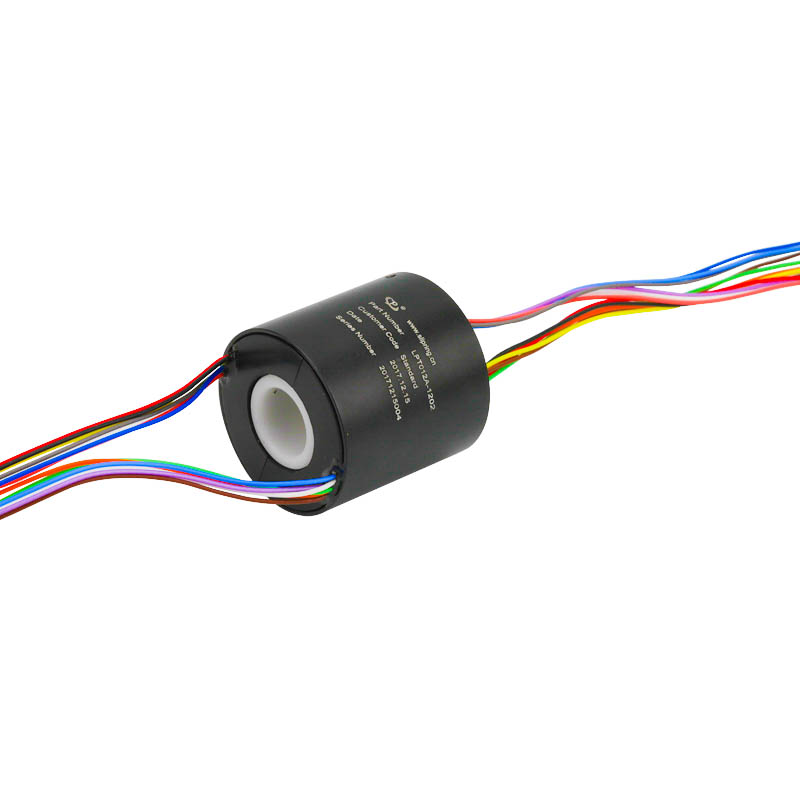

Product display

Application Picture

JINPAT Electronics, founded in 1996, is a national high-tech enterprise specializing in R&D, manufacturing and sales of high-precision slip rings. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring.

Besides, customization is supported to cater to the different application in that slip ring can be designed exclusively integrated with Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth.
