2000rpm capsule Fibre Optic Rotary Joint IP68

Single-Channel Optical Slip Ring,2000rpm or More IP68 High Protection,Can be used asSubsea operating systems

Description

The LPFO-01E optical slip ring features optic fiber as the media for data transmission. The fiber connector is designed perfectly for transmitting a large capacity of data and signal from stationary to rotating parts. It has an extremely low insertion loss but considerabky high return loss. Being dust and water tight, it can serve as a photoelectric integrated rotary joint. Besides, no contact or friction, it can achieve transmission in combination of various signals with a high bandwidth, even doubled when matched with wavelength division multiplexer. Working in wide temperature, the part, with sturdy configuration and fine material, is vibration and shock resistant.

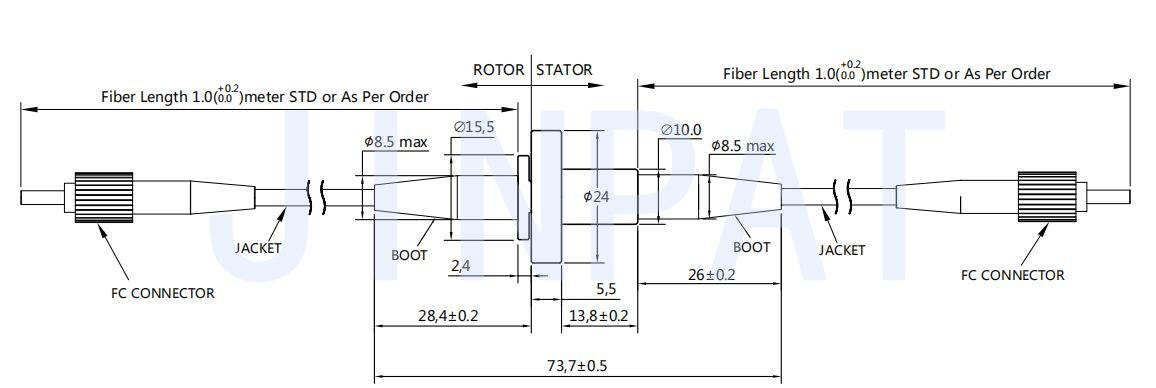

Slip ring outline drawing

Specification

Features

• Use fiber for the data transmitting of rotary connections systems
• No contact and friction
• Lightweight and high-grade sealing

Main Application

• Material transferring system
• Rotating tower of the chariot
• Submarine operating system
• Vessel system

Product Display

Product Application (Rotary turret on vehicles)

JINPAT Electronics, founded in 1996, is a national high-tech enterprise specializing in R&D, manufacturing and sales of high-precision slip rings. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring.

Besides, customization is supported to cater to the different application in that slip ring can be designed exclusively integrated with Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth.
