4 Circuits 2A Per Wire Miniature Capsule Slip Ring with Low Contact Resistance

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPM-04A
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	TT/CC/Paypal
Supply Ability :	50K units/week
Delivery Time :	2 weeks ARO

Add to Cart

Product Details
Company Profile

4 Circuits 2A Per Wire Miniature Capsule Slip Ring with Low Contact Resistance

4 Circuits 2A Per Wire Miniature Capsule Slip Ring with Low Contact Resistance

Quick detail

The LPM-04A miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

The LPM-04A allows tremendous flexibility in dealing with system size restrictions. It is available in 1-4 circuit configurations.

Specification

Specifications
Operating Speed	0-300 rpm
Circuits	4
Voltage	240 VAC/DC
Rated Current	2 amps per circuit
Temperature Range	-20℃ to +60℃
Contact	Gold to Gold
Lead Size	30# silver plated copper
Lead Length	Standard 250 mm (9.843inch)
Dielectric Strength	≥500 VAC @50Hz, between each circuit
Insulation Resistance	1000 MΩ @ 500 VDC
Electrical Noise	1mΩ Min

Capsule Length =L
# of Circuits
4

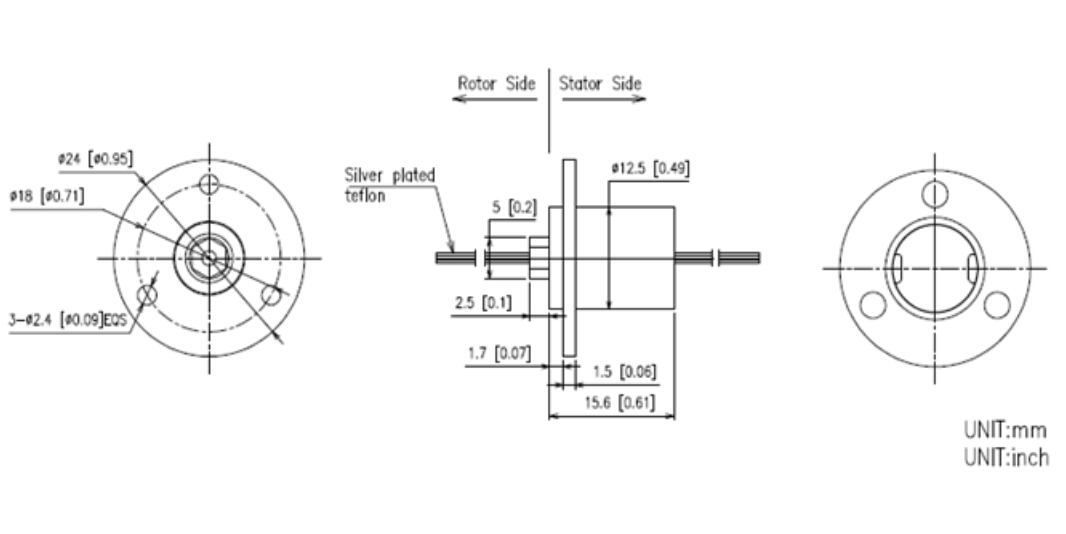

Outline dimension

Product display

Product application(LED Advertisement Board)
