Electrical Slip Ring Integrating with HF Rotary Joint with Multiple
Contacts and Customizable Housing
Description
An LPC-55T-HF01 slip ring is a special unit with RF Coaxial
Connector. Color-coded lead
wires are used on both the stator and rotor to simplify electrical
connections.
This series of the product can transmit 25 circuits @1A And 30
circuits @5A. And it consists of the high-frequency slip ring and
high frequency and electric hybrid slip ring. At present, it has
been applied in radar antenna and military equipment. It uses our
fiber brush technology which offers several advantages over
conventional slip ring contacts including multiple points of
contact per brush bundle, low contact force per fiber and low
contact wear rates.
Options
Number of circuits
High-frequency range
Voltage and current rating
Features
Transmitting 25 circuits @1A And 30 circuits @5A current
Compact structure and strong anti-resistance capacity
Flexible, color-coded, silver-plated, lead wires
Addition of special components
The inclusion of coax and miniature data bus cables
Advantages
Low torque minimizes system torque budget
Compact design to fit in the most demanding space.
Smooth running
Low electrical noise
Quick shipment per your urgent requirement
360°continuous rotation
High bandwidth transfer capability

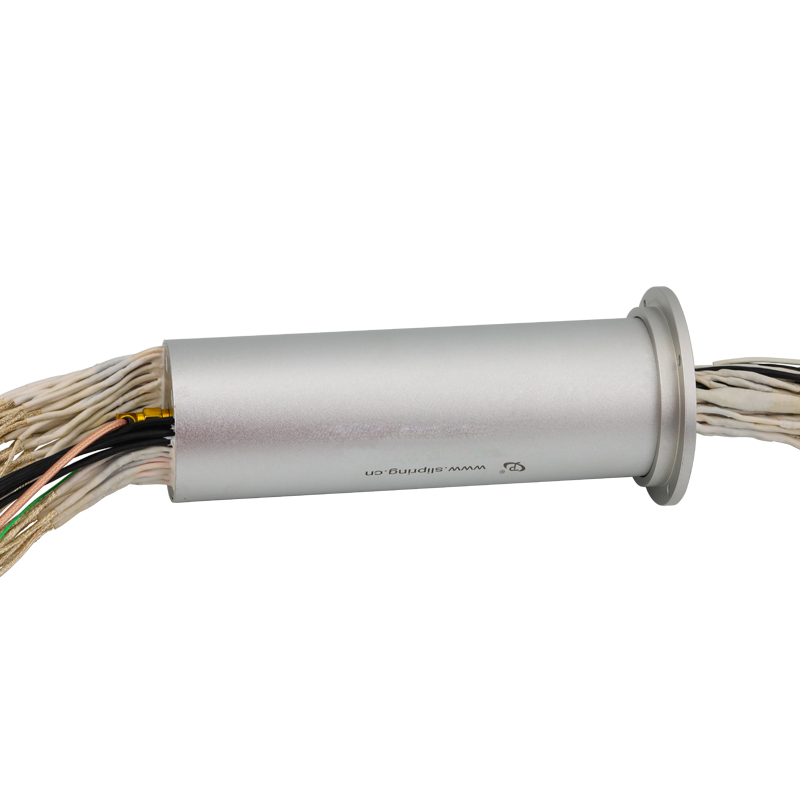

Product Display
Product Application
Testing lab
Company introduction
JINPAT has 20 years experience in SLIP RING manufacturing. Our
factory covers an area of 7000 square meters with professional
R&D team, advanced production equipment, and 300 skillful
employees. JINPAT slip ring is one of the best-known brands in
Europe and North America.
It has advanced technical equipment and high precision test
instruments. Our manpower is so competent that we meet the needs of
different customers with various specifications in durability and a
reliable quality.
