    3 Poles High Voltage Slip Ring 30 Amps Electrical Interface

    Ask Lasest Price
    Brand Name : JINPAT
    Model Number : LPW-02
    Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS
    Price : Negotiable
    Payment Terms : TT/CC/Paypal
    Supply Ability : 500 pieces /Week
    Delivery Time : 2 weeks ARO
    • Product Details
    • Company Profile

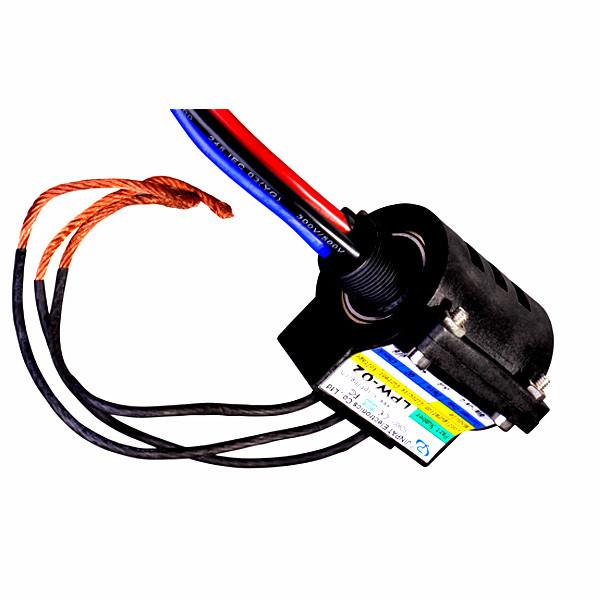

    3 Poles High Voltage Slip Ring 30 Amps Electrical Interface

    3 Poles High Voltage Slip Ring with 30 amps Electrical Interface for Wind Turbine Use

    Wind Turbine Slip Ring


    Quick Detail


    LPW-02 Wind Turbine Slip Ring This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.


    Specifications


    Specification
    Poles3
    Operating Speed0-300rpm
    Working Temperature-35℃~ +50℃
    Working Humidity60%RH or higher
    Electrical:
    Voltage Rating1000VAC/DC or higher
    Current Rating30A per circuit
    Dielectric Strength≥500V@50Hz between each circuit
    Insulation Resistance1000MΩ@ 500VDC
    Electrical Noise1mΩ Min
    Mechanical:
    Contact MaterialCarbon Brush
    Lead Wire SizeHigh-TemperatureResistant Material
    Lead Wire LengthStandard 250mm(9.843inch)

    Protection


    IP43 or higher

    Dimensions


    Application Picture
