    Gold - Gold Contacts Standard Slip Ring 240V AC / DC

    Ask Lasest Price
    Brand Name : JINPAT
    Model Number : LPS-06
    Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS
    Price : Negotiable
    Payment Terms : TT/CC/Paypal
    Supply Ability : 500 pieces /Week
    Delivery Time : 2 weeks ARO
    • Product Details
    • Company Profile

    Gold - Gold Contacts Standard Slip Ring 240V AC / DC

    Gold-Gold Contacts Slip Ring with Separate Rotor and Stator with 240V AC / DC Voltage


    Description


    This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

    Using a 90° V-groove ring design for each ring, the LPS-06 provides smoother running, lower torque and lower electrical noise than competitive slip rings.


    Specifications
    Operating Speed0-100 rpm
    Number of Circuits6
    Voltage240 VAC/DC
    Current Rating2A
    Temperature Range-20℃ to +60℃
    Working Humidity60%RH or higher
    Contact MaterialGold to Gold
    Lead Size28 # silver plated copper
    Lead LengthStandard 250 mm (9.843inch)
    Dielectric Strength≥500 VAC @50Hz, between each circuit
    Body MaterialPrecious metal
    Insulation Resistance1000 MΩ @ 500 VDC
    Electrical Noise1 mΩMin

    Product display

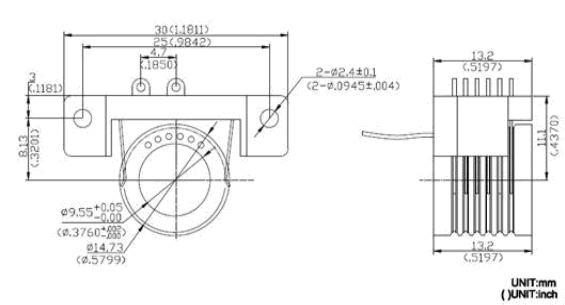

    Outline Drawing
