Compact-Designed Electrical Slip Ring of 2A in 8 Circuits Max.
Speed Up to 300rpm for Test Devices
The slip ring is a key component of the radar antenna, it can make
the continuous connection between the stationary part and rotary
part of radar when transmitting power and signal.
JINPAT is a leading manufacturer of slip ring field. And it has
been devoting to developing slip rings of a longer lifetime and
higher quality. At present, the lifetime of JINPAT slip ring has
already reached the world standard, and the slip ring of JINPAT can
work for 20 years in the area of the test devices.
The technique of JINPAT capsule slip ring manufacturing is so ripe
that many experienced engineers can design and customize products
for customers according to the special requirements.
The LPC-08B capsule slip ring is a standard, off-the-shelf unit
that uses gold contacts at the rotary interface. Color-coded lead
wires are used on both the stator and rotor for simplifying
electrical connections.
Using a 90° V-groove ring design for each ring, the LPC-08B
provides a smoother running, lower torque and lower electrical
noise than competitive slip rings. It is available in 1 to 8
circuits model.
Features
- 8 circuits
- Capsule Length of 26.43 mm
- 2 amps, 240VAC/DC per circuit
- Speed up to 300 rpm continuous
- Gold-Gold contacts makes long lifetime
- Compatible with data bus protocols
- Sealed units are also available
- Flexible, color-coded, silver-plated, insulated lead wires
- Transferring analog and digital signals
- Also available with 5 and 10 amps power rings combined with 2 amps
rings.
- Precision ball bearings meet or exceed life requirements for most
commercial applications
| Specifications |
| Operating Speed | 0-300 rpm |
| Number of Circuits | 8 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 1mΩ Min |
Advantages
- Low torque minimizes system torque budget
- Compact design to fit into the most demanding space.
- 360°continuous rotation with smooth running
- Low electrical noise
- Quick shipment of urgent requirements
- High bandwidth transferring capability

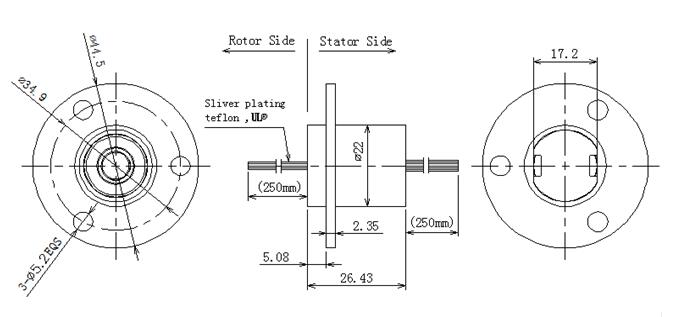

Outside Drawing
◆ The operating life of the unit depends upon temperature, rotation
speed, and environment.
◆ The operating life ≥50,000,000 runs ref.
Company Introduction
JINPAT has 20 years experience in SLIP RING manufacturing. Our
factory covers an area of 7000 square meters with professional
R&D team, advanced production equipment and more than 300
skillful employees. JINPAT slip ring is one of the best-known
brands in the Europe and North America. Our manpower is so
competent that we meet the demands having varied specifications
with ensured durable and reliable quality.
