5 Circuits Capsule Slip Ring & Compact Rotary Electrical Interface with Low Electrical Noise

Description

The LPMS-05D super miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. To simplify electrical connections, color-coded lead wires are used on both the stator and rotor. It allows tremendous flexibility in dealing with system size restriction when larger versions are not an option.

Specification

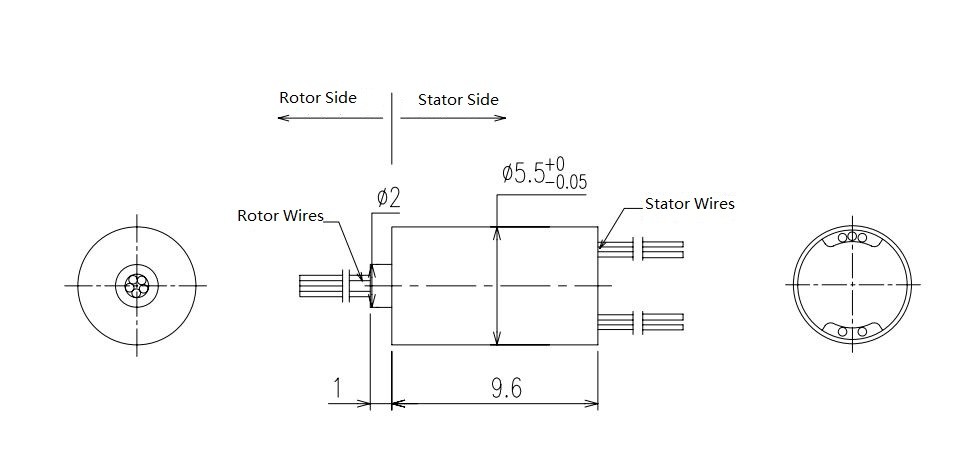

Outline Drawing

Application Picture

JINPAT Electronics, founded in 1996, is a national high-tech enterprise specializing in R&D, manufacturing and sales of high-precision slip rings. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring.

Besides, customization is supported to cater to the different application in that slip ring can be designed exclusively integrated with Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth.
