Precious Metal Slip Ring Solutions Electrical And Fiber Optic Rotary Joint

3 Circuits Electrical and Fiber Optic Rotary Joint with Wide Working Temperature Range and Long service Life

Description

The LPT000-0203-FO01 is a hybris rotary joint that integrates electrical part and fiber optic rotary joint.

It can transmit current and optical signal from rotating parts to stationary parts in a system. Apart from a large dielectrica strength, it has a long service life over 50 million revolutions. Furthermore, they are water-proof, pressure-proof, and vibration resistant. Customizable lead wires and connectors support any plug-in including flying lead.

Specification

Parameters
Circuit	1* Fiber+2*3A	Life	≥50 million turns(for reference)
Working Speed	0-4000rpm	Working Temperature	-40℃-+80℃
Optical
Wavelength	1310-1550nm	Fiber Type	SM/MM
Insertion Loss	<2 dB (Typical:0.5dB)	Insertion Loss Variation	~+/-0.25dB(Typical:+/-0.15dB)
Return Loss	＞40 dB	Connector Type	ST/FC/SC/LC
Electric
Voltage Rating	380VAC/DC	Current Rating	3A per circuit
Dielectric Strength	1000VAC@50Hz	Insulation Resistance	500MΩ@500VDC
Contact Resistance Fluctuation Value	≤70mΩ((50rpm)	Wire Size	AWG22#
Mechanical
IP	IP54	Contact	Precious Metal
Housing	Aluminum Alloy	Installation Method	Rotor Side is fixed on the spindle with screws and plate
For any request, please contact us, our engineers will recommend you proper product or custom solution

Main application

Head-mounted display device
Medical equipment
Process control equipment

Outline Drawing

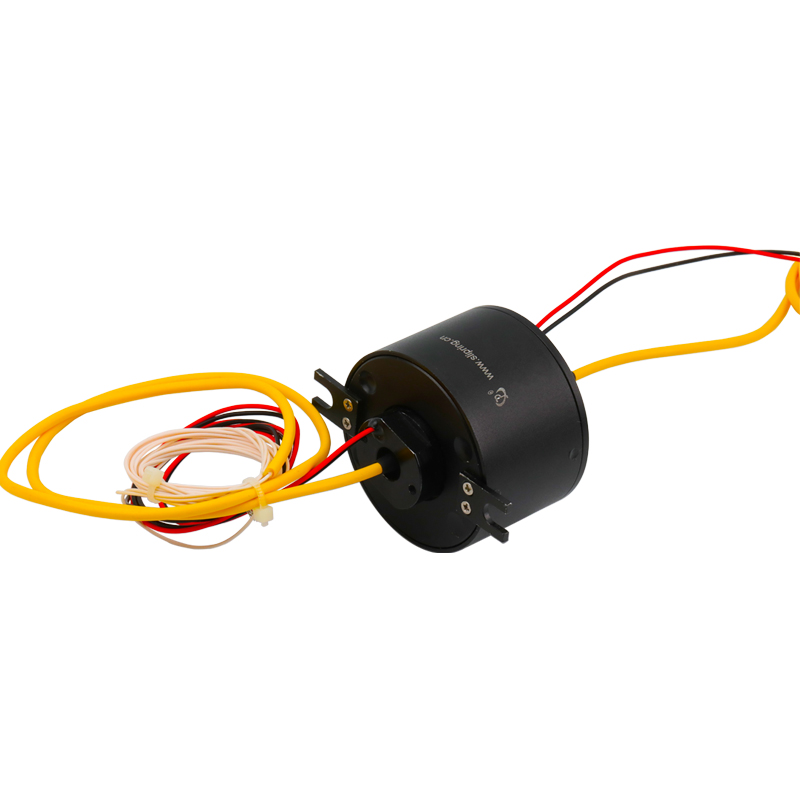

Product Display
