16 Wires Through Bore Slip Ring with 380VAC

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPT096-0430-1202C
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	TT/CC/Paypal
Supply Ability :	500 PCS/week
Delivery Time :	2 weeks ARO

Add to Cart

Product Details
Company Profile

16 Wires Through Bore Slip Ring with 380VAC

16 Wires Through Bore Slip Ring with 380VAC High Voltage and High Working Humidity

Description
The LPT096-0430-1202Cprovides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 96mm through-bore for demanding applications. Similar in design to our very popular LPT096series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance free, lifetime operation.

LPT096-0430-1202C through hole slip ring features 16 circuits and routing 2~30A per circuit.

Specification
Circuits	16 circuits
Operating Speed	0-100rpm
Working Temperature	-40℃~ +70℃
Working Humidity	95%RH (30℃)
Electrical:
Voltage Rating	380VAC/DC or higher
Current Rating	2~30A per circuit
Dielectric Strength	≥500V@50Hz between each circuit
Insulation Resistance	500MΩ@ 500VDC
Electrical Noise	≤70mΩ
Mechanical:
Contact Material	Precious metal
Lead Wire Length	Standard 300mm (11.811inch)
Housing Material	Aluminum alloy
Protection	IP54

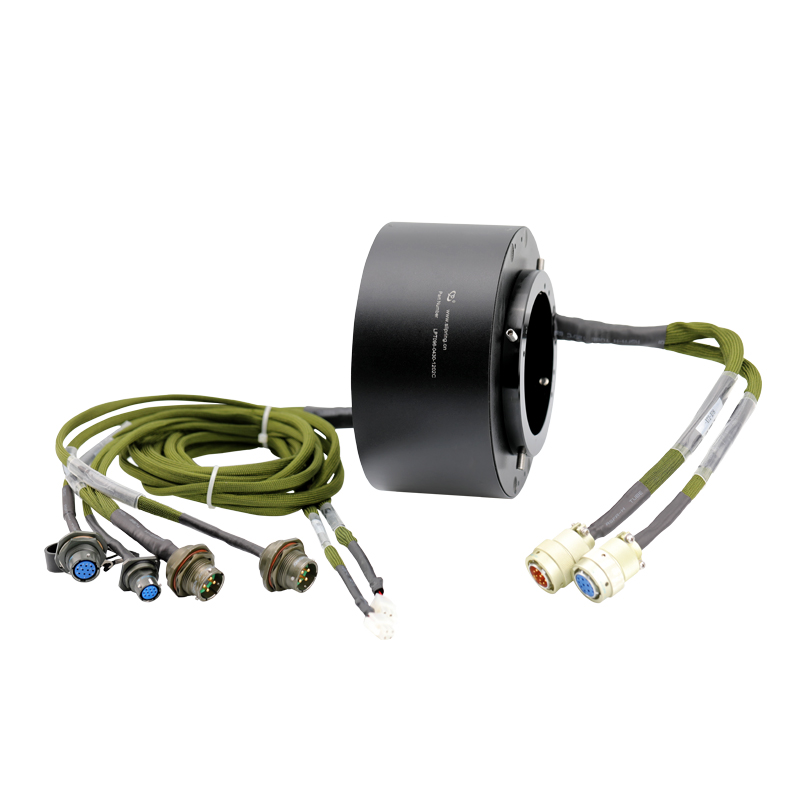

Product Display
