4 Circuits Super Miniature Slip Ring 1mΩ Low Electrical Noise
JP06-020-03 Slip Ring Description
This unit can be used in any electromechanical system that requires
unrestrained, continuous rotation while transferring power or data
from a stationary to a rotating structure.
Compact slip rings may have a lot of channels in a very compact
size. Compact slip rings are ideal for video and digital signals.
Typical use applications are video systems (CCTV), robotics, cable
reels, medical equipment and packaging machines.
JP06-020-03 is suitable for all kinds of design of lightweight,
compact space, high-quality stainless steel shell material,
suitable for all kinds of the bad working environment; high-quality
gold plated ring, to ensure the reliability of power supply and
signal transmission.
This series has been designed keeping flexibility,
cost-effectiveness, and reliability in mind.
| Specifications |
| Operating Speed | 0-10 rpm |
| Number of Circuits | 4 |
| Voltage | 240 VAC |
| Current Rating | 4 circuit*2A,2 circuit*shield |
| Temperature Range | -10℃ to +70℃ |
| Contact Material | Gold to Gold |
| Lead Size | 30# silver plated copper |
| Lead Length | Lead wire of stator 60mm |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 1000 MΩ @ 500 VDC |
| Electrical Noise | 1mΩ Min |
| Housing Material | Engineering plastic or metal |

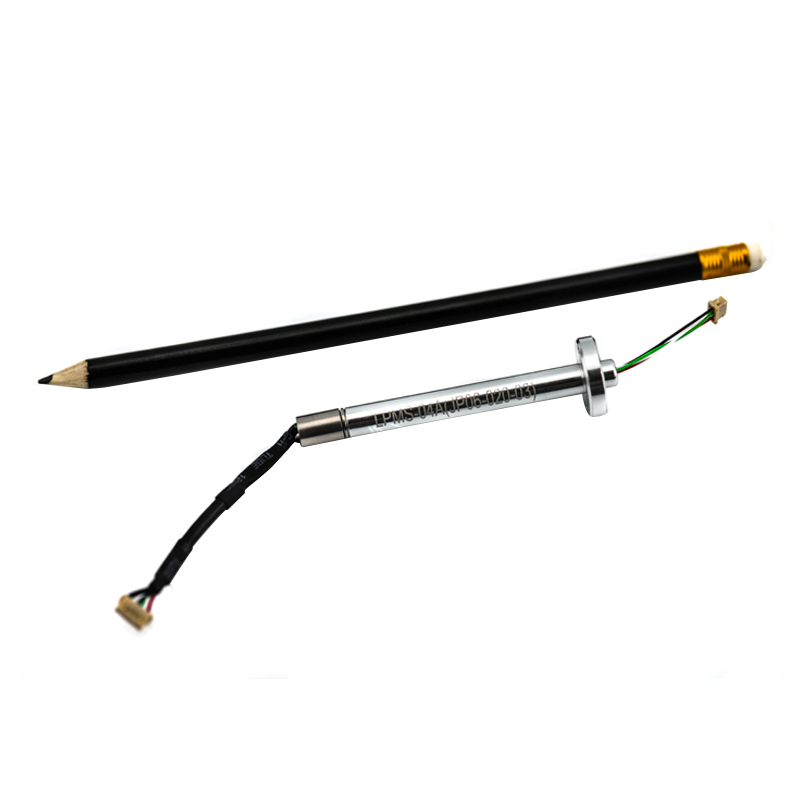

JP06-020-03 Slip Ring Product Display

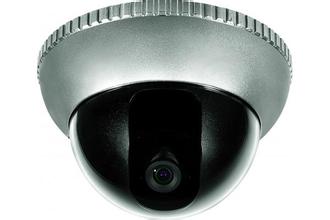

Application picture
