3 Circuits Separate Slip Ring Precious Metal Contact Compatible With Data Bus Protocols

Description

An electrical slip ring is a device used to transfer power and data from a stationary to a rotating structure. Slip rings can provide continuous or intermittent rotation while transmitting power and data - simplifying operation, improving application performance, and eliminating the risk of damage to wiring between movable parts.

The LPS019-0210 separate slip ring is a customized unit that uses precious metal contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

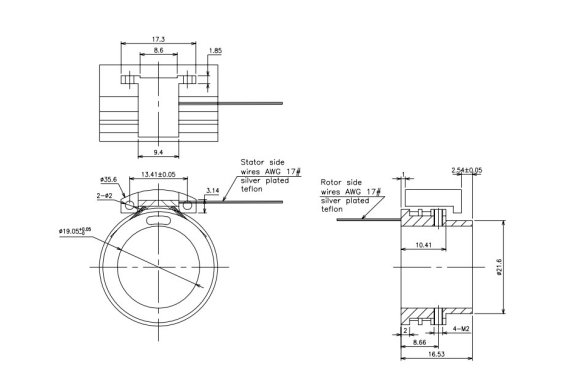

Outline Drawing

Product Display

Application Picture

JINPAT Electronics, founded in 1996, is a national high-tech enterprise specializing in R&D, manufacturing and sales of high-precision slip rings. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring.

Besides, customization is supported to cater to the different application in that slip ring can be designed exclusively integrated with Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth.
