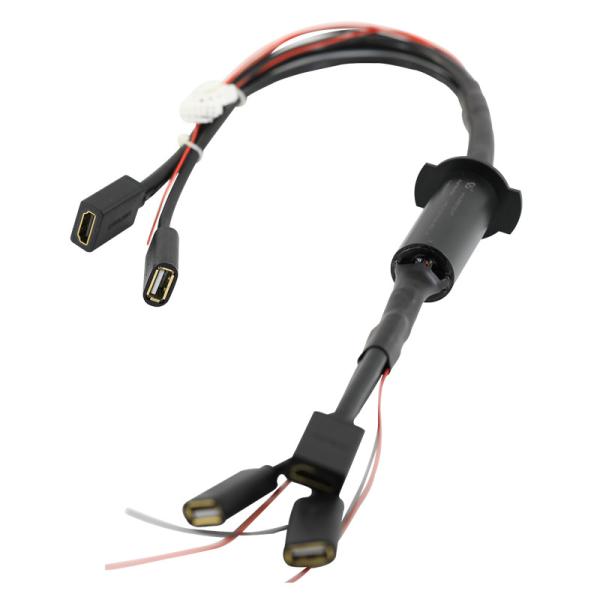

Signal Slip Rings, IP54 2 circuit 1.5A VR Slip Ring

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPC-0104-0402-HD01-U2
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	TT/CC/Paypal
Supply Ability :	50K units/week
Delivery Time :	12days ARO

Add to Cart

Product Details
Company Profile

Signal Slip Rings, IP54 2 circuit 1.5A VR Slip Ring

Product Description

Signal slip ring

The slip ring can achieve the data transmission between rotating platform and static platform, in order to solve the rotating system components between the large-capacity data and signal transmission, providing the best technical solutions. JINPAT is in the national leading level on this technology field.

The LPC-0104-0402-HD01-U2(JP18-122-04HW) can transmit electric signal, high definition, and USB2.0 signal.

Product advantages and characteristics

Can transmit USB3.0 signals, power and ordinary signals while transmitting HDMI high-definition video signals
The product is light in weight and compact in structure, which reduces the weight of the whole VR equipment and reduces the installation space.
Made of precious metal contact material, aluminum alloy as external material, protection grade IP65
Long life, reaching 10 million rpm
Wire length can be customized, waterproof, pressure resistant, shock resistant
Ready-made built-in connector, high transmission rate

Protection Grade	IP54
Working Speed	0~100RPM
Circuits	2 circuit * 1.5A, 1 circuit * DC, 2 circuit * 4A, 1 circuit HDMI, 1 circuit * USB2.0
Voltage	240V
Working Temperature	-20~+60℃
Electric shock material	Gold to Gold
Humidity	60%RH
Insulation	50MΩ@200V(Current loop) 20MΩ@100V(Signal ring)
Housing material	Aluminum alloy
Characteristic Impedance	≤15Ω

Outline

Signal Slip Rings, IP54 2 circuit 1.5A VR Slip Ring

Typical applications

high-definition video surveillance,serial communication, industrial automatic control We can customize all kinds of special slip rings according to your requirements.
