Slip Ring Commutator 8 Circuits With Flange Gold Gold Contact

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPMS-10A-08
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	TT/CC/Paypal
Supply Ability :	50K units/week
Delivery Time :	1weeks ARO

Add to Cart

Product Details
Company Profile

Slip Ring Commutator 8 Circuits With Flange Gold Gold Contact

8 Circuits Compact Slip Ring with Flange and Gold-gold Contact

Standard middle-sized Capsule Slip Ring is able to integrate over 125 circuits, with optional outer diameter from 22mm~54mm. This series adopts advanced military-standard surface processing techniques, and is highly precise, compact and easy to assemble. Gold-to-gold contact ensures low resistance and super long service life. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.

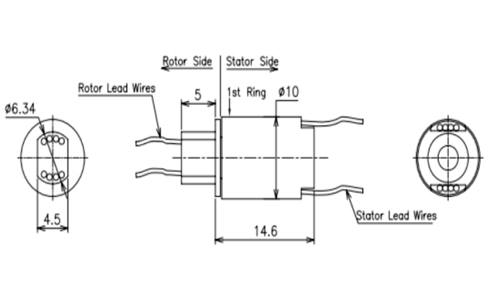

Outline drawing

Specifications
Operating Speed	0-300 rpm
Circuits	8
Voltage	240 VAC/DC
Rated Current	1 amp per circuit
Temperature Range	-20℃ to +60℃
Contact	Gold to Gold
Lead Size	30# silver plated copper
Lead Length	Standard 250 mm (9.843inch)
Dielectric Strength	≥500 VAC @50Hz, between each circuit
Insulation Resistance	1000 MΩ @ 500 VDC
Electrical Noise	1mΩ Min
Housing	Stainless steel

Display Picture
