1 Channel Slip Ring of RF Rotary Joint with Optional Connector Type

Quick detail

Description

Slip rings can be designed in a variety of configurations. For example, they can provide an open through-bore to accommodate other components such as a fluid joint or a waveguide. Instead of a drum, the rings can be configured on a platter or pancake. This is appropriate if the space available for the slip ring is short and wide instead of tall and narrow.

Slip rings enable the transfer of electric power or signal circuits across a rotating surface, such as those found in radar antennae, gun turrets, periscopes, electro-optic sensor gimbals and space satellites. The sliding contact is established by a brush that presses against a metal ring.

Product display

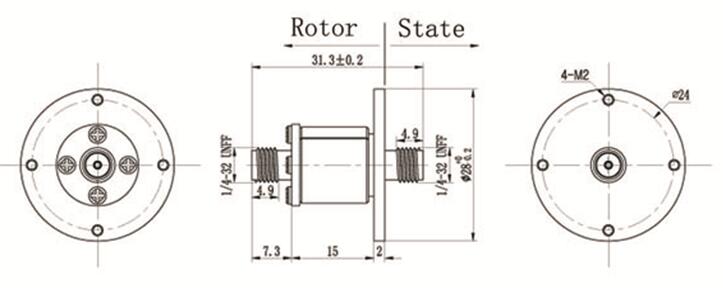

Outline Drawing

Application Picture

JINPAT Electronics, founded in 1996, is a national high-tech enterprise specializing in R&D, manufacturing and sales of high-precision slip rings. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring.

Besides, customization is supported to cater to the different application in that slip ring can be designed exclusively integrated with Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth.
